Introduction

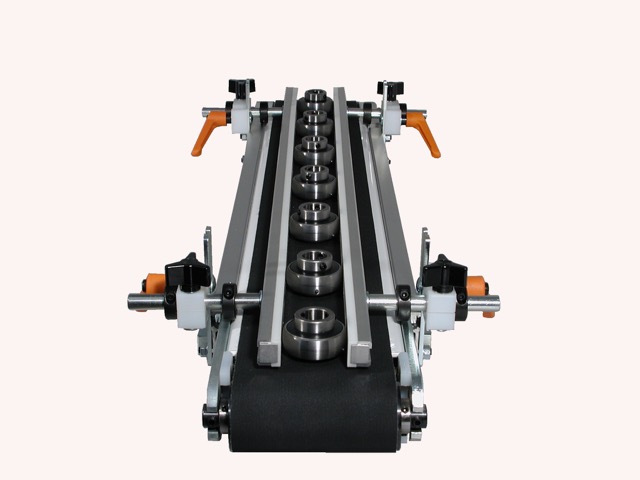

Our Two-Axis Adjustable Side Guides offer the ultimate flexibility for product stability and precise handling on low-profile conveyors.

Designed for rapid, tool-less adjustment in both height and width, they are perfect for applications that require frequent changes to accommodate different product sizes.

Made from industrial-grade materials with friction-reducing UHMW liners, these side guides ensure smooth, accurate product flow, reducing downtime and enhancing productivity.

Whether you’re dealing with lightweight packaging, delicate components, or larger industrial parts, these guides provide the versatility and efficiency needed to optimize your conveyor system's performance.

Tool-less Width Adjustment

The tool-less width adjustment feature allows operators to effortlessly change guide positions without the need for tools. This minimizes downtime and enables quick configuration changes for different product sizes, enhancing efficiency and throughput.

Specifications

Features

Benefits

Options

  • Bracket Height Options: Low, Medium, and High, suitable for a wide range of product sizes
  • Width Adjustment: Tool-less, designed for quick adaptability to different product dimensions
  • Liner Material: UHMW (Ultra-High-Molecular-Weight Polyethylene) for friction reduction and long-lasting durability
  • Material: Constructed from industrial-grade materials for enhanced performance in various environments
  • Custom Widths: Customizable width adjustments available to meet specific application requirements
  • Quick Removal: Designed for rapid, tool-free installations and adjustments
  • Compatibility: Engineered to integrate seamlessly with standard low-profile conveyor models
  • Operating Environment: Built for cleanroom, high-temperature, and washdown conditions
  • Tool-Less Adjustment: Quickly change width and height settings without tools for maximum efficiency.
  • Durable Construction: Made from high-grade materials for longevity and resilience in demanding environments.
  • Friction Reduction: UHMW liners provide smooth product movement and minimize wear.
  • Rapid Installation: The two-axis design allows for quick setup and adjustment, reducing downtime.
  • Customizable: Options for different bracket heights and widths to suit diverse applications.
  • Enhanced Productivity: Minimize errors and product misalignment with precise, adjustable guides.
  • Time-Saving: Tool-free adjustments reduce setup and changeover time, enhancing overall productivity.
  • Versatility: Adapt to various product sizes, thanks to customizable width and height settings.
  • Long-Term Durability: Built to withstand continuous use in industrial environments, reducing maintenance costs.
  • Optimal Product Handling: Friction-reducing UHMW liners ensure smooth product flow, protecting delicate items.
  • Custom Heights and Widths: Choose from a variety of custom settings to fit unique product requirements.
  • Material Options: Available in standard or high-temperature UHMW for specialized applications.
  • Advanced Mounting Systems: Optional bracket designs for enhanced stability in high-speed environments.
  • Detachable Guides: Quick-detach systems for easy cleaning and reconfiguration.

    • Key Features

    • Tool-less, quick adjustment

    • Durable UHMW liners

    • Rapid installation and removal

    • Customizable height and width options

    • Built for diverse environments

    Documentation

    Side Guides Technical Drawings
    Side Guides Brochure
    Specification Details
    Bracket Height Options Low, Medium, High
    Width Adjustment Tool-less quick adjustment for various product sizes
    Liner Material UHMW (Ultra-High-Molecular-Weight Polyethylene)
    Custom Widths Available for unique application requirements
    Material Industrial-grade construction for durability
    Operating Environment Cleanroom, high-temperature, and washdown conditions
    Quick Removal Designed for rapid, tool-free installations
