Introduction

Our 2-Axis Adjustable Side Guides offer the ultimate flexibility in guiding and securing products on your conveyor system. Designed to provide precise lateral and vertical adjustments, they ensure your products remain stable and properly aligned throughout the conveyor's operation.

Ideal for industries requiring quick product changeovers, these side guides reduce downtime and boost productivity, while their tool-free adjustment feature simplifies the process, making them a versatile choice for various applications.

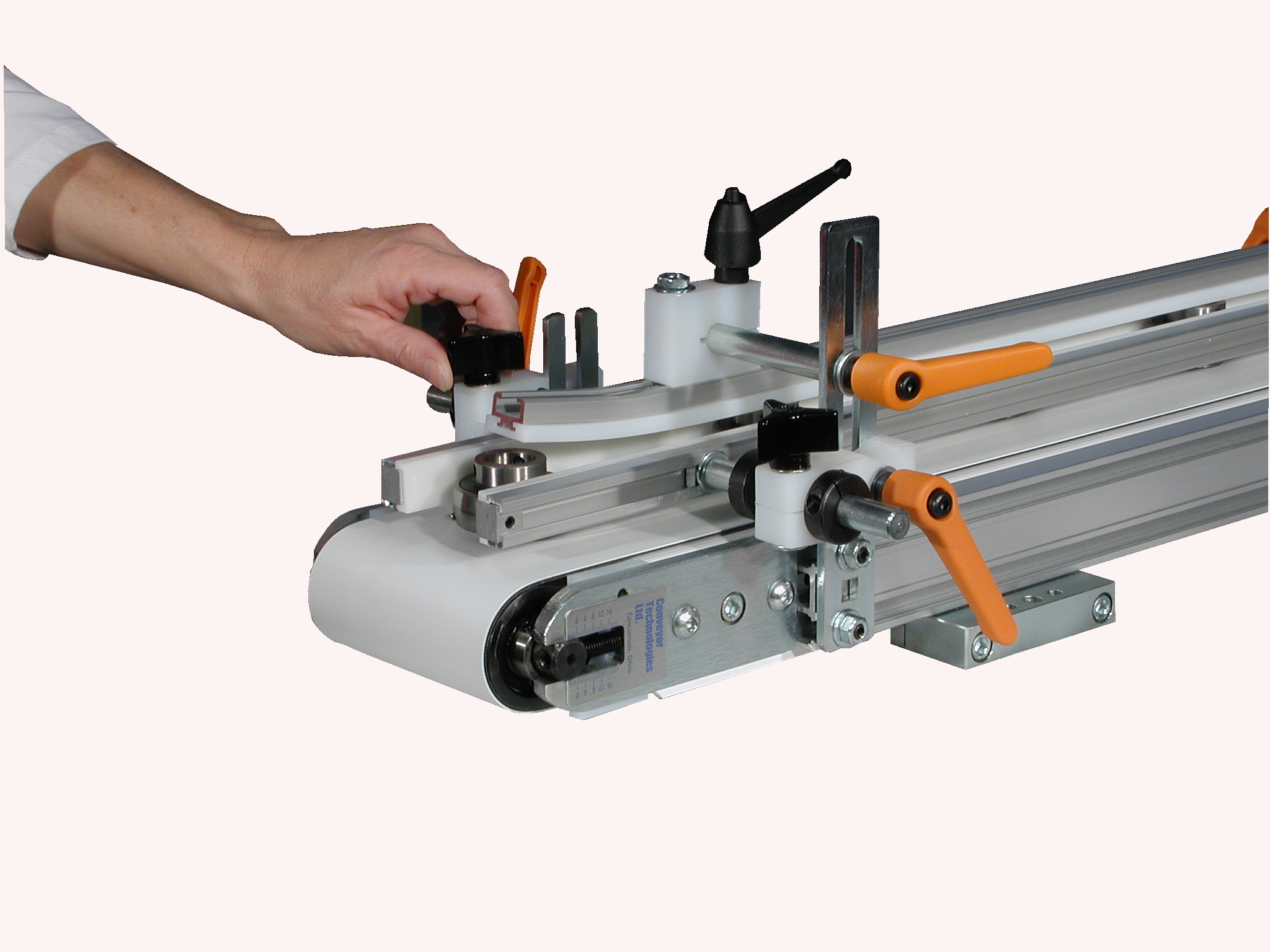

Tool-Free Adjustability

Effortlessly modify the position of the guides with our tool-free adjustability system. The user-friendly design enables fast and accurate changes to accommodate various product sizes, enhancing efficiency and reducing setup time.

Specifications

Features

Benefits

Options

  • Lateral Adjustability: Provides lateral guide adjustments ranging from 0.0" to 10.0" for optimal product containment.
  • Vertical Adjustability: Adjusts vertically to three positions: Low (13/16" to 1"), Medium (1.75" to 2.125"), and High (3" to 4").
  • Bracket Heights: Available in Low, Medium, and High configurations, each allowing fine-tuning of the guide's placement.
  • Construction Material: Durable anodized aluminum brackets with UHMW contact surfaces to reduce friction and wear.
  • Mounting Options: Compatible with all standard conveyor frames, ensuring seamless integration into existing setups.
  • Maintenance: Requires minimal maintenance, with components designed to resist wear and ensure longevity.
  • Quick Adjustments: Easily adjust both the lateral and vertical positions of the side guides without needing tools.
  • Precision Alignment: Fine-tune the guide position for various product sizes, providing superior stability and reducing the risk of product tipping or shifting.
  • Durable Design: Made with high-quality aluminum brackets and UHMW liners for maximum strength, reducing friction and minimizing wear.
  • Customizable Heights: Available in multiple bracket heights, offering flexibility to suit different product profiles.
  • Universal Compatibility: Designed to fit seamlessly with any low-profile conveyor, making it a versatile choice for diverse manufacturing environments.
  • Enhanced Productivity: Minimize downtime with tool-free adjustments that facilitate fast product changeovers.
  • Reduced Maintenance: High-quality construction materials ensure durability, reducing the need for frequent maintenance or replacement.
  • Improved Product Handling: Adjustable guides ensure consistent product orientation, minimizing defects or errors during production.
  • Cost-Efficient: Investing in flexible side guides saves costs on additional equipment and maintenance.
  • Versatile Applications: Suitable for a range of industries including packaging, food processing, pharmaceuticals, and more.
  • Bracket Heights: Choose from Low, Medium, or High brackets to match your product’s profile and conveyor setup.
  • UHMW Liners: Available in standard or high-temperature UHMW liners for applications requiring resistance to heat and abrasion.
  • Custom Configurations: Tailor the side guides to meet specific product requirements, including custom sizes or finishes.
  • Pre-Set Position Locks: Optional position locks allow users to preset the guide positions for quick changes between different products.

    • Key Features

    • Tool-free lateral and vertical adjustments

    • Durable anodized aluminum construction

    • Multiple height configurations

    • UHMW liners for reduced friction

    • Seamless integration with low-profile conveyors

    Documentation

    Side Guides Technical Drawings
    Side Guides Brochure
    Specification Details
    Lateral Adjustability 0.5" to 4"
    Vertical Adjustability Low (13/16" to 1"), Medium (1.75" to 2.125"), High (3" to 4")
    Bracket Heights Low, Medium, High
    Construction Material Anodized Aluminum with UHMW liners
    Mounting Options Universal Compatibility with Standard Conveyors
    Maintenance Minimal; components designed for longevity
