Introduction

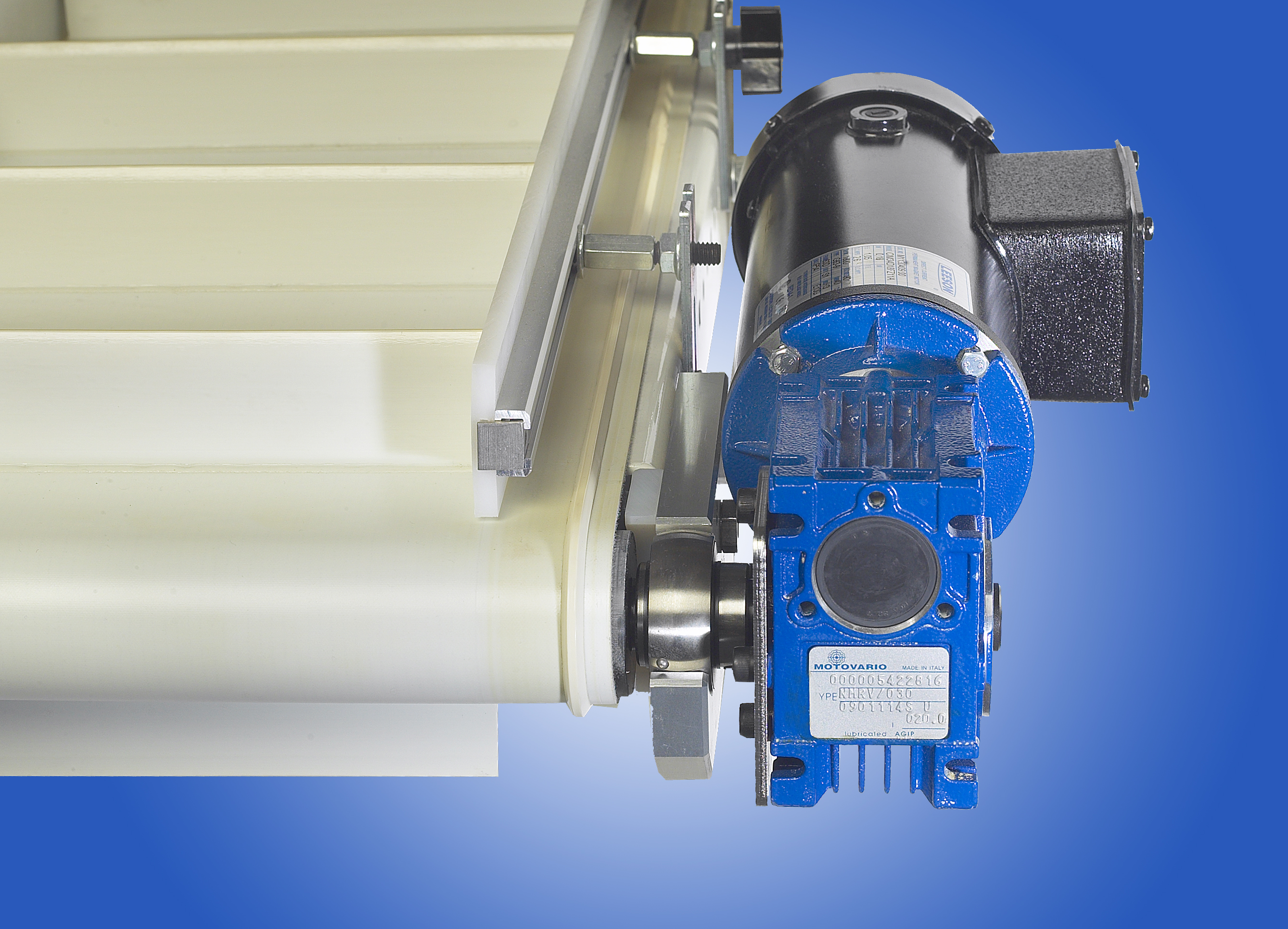

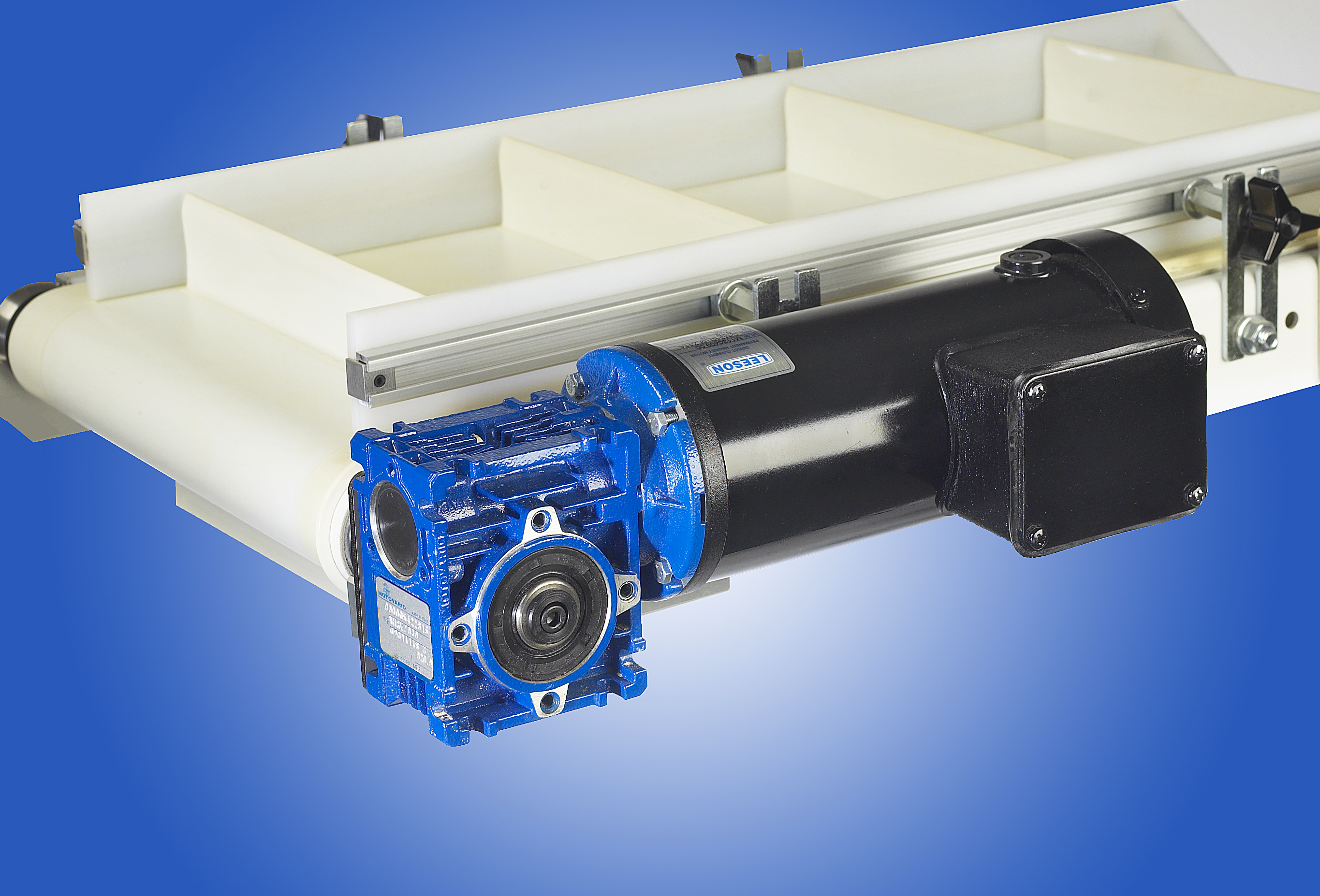

The Shaft Mounted Drive is engineered to deliver space-saving power transmission with versatile, compact design, tailored for tight conveyor setups. Ideal for industries like packaging, manufacturing, and automation, it ensures efficient power delivery while minimizing operational space. Equipped with sealed-for-life components, this drive system enhances uptime by reducing maintenance needs, providing a reliable and robust solution for varied conveyor applications.

Compact and Efficient Design

The Shaft Mounted Drive features a compact structure designed for efficient power transmission in space-restricted conveyor systems. Its high-torque output provides smooth and precise operations, allowing easy integration into a wide range of setups.

Specifications

Features

Benefits

Options

  • Power Options:
    • 90V DC Motor
    • 115V-1PH AC Motor
    • 208V-1PH AC Motor
    • 220/230V-1PH Motor
    • 230-460V-3PH AC Motor
  • Variable Speed Control:
    • Adjustable speed range from 0 to 250 ft/min.
    • Configurable for specific conveyor application requirements.
  • Load Capacity:
    • Capable of moving loads up to 540 lbs (244.3 kg).
  • Drive Type:
    • Direct coupled allows for easily adjustable drive configurations.
  • Frame Material:
    • Powder-coated aluminum or stainless steel.
  • Operating Environment:
    • Suitable for various conditions, including washdown and high-precision settings.
  • Warranty:
    • 2-year Limited Warranty.
  • Space-Saving Structure: Designed to fit into compact conveyor setups, maximizing operational space while maintaining high performance.
  • Variable Speed Control: Provides precise speed adjustments to match various conveyor requirements, ensuring optimal performance across different applications.
  • Reduced Components : Requires minimal maintenance, ensuring long-term reliability and reducing downtime for uninterrupted operations. Allows for gearmotor changeout in less than 2 minutes if your electrical connection has a screw on connector.
  • Versatile Mounting: Offers flexible mounting options, gearmotor can be rotated around the shaft of the conveyor in 15 degree increments configurations, for seamless integration with diverse conveyor situations.
  • High-Torque Output: Ensures smooth and efficient operation, handling different material loads with precision and consistency.
  • Enhanced Uptime: With sealed Lubed-for-life and robust construction, the Shaft Mounted Drive minimizes maintenance, reducing production interruptions.
  • Versatile Application: Supports a wide range of conveyor systems in industries such as packaging, manufacturing, and automation.
  • Energy-Efficient Operation: Optimized motor design lowers power consumption, contributing to a sustainable and cost-effective conveyor solution.
  • Customizable Performance: Variable speed control and multiple mounting options allow for tailored configurations, ensuring the drive meets specific operational needs.
  • Space Efficiency: Compact design saves valuable floor space in production environments, allowing for optimized layout planning.
  • Custom Mounting Configurations: Tailor the drive system to fit your conveyor setup, whether inline, bottom, or other specific mounting needs.
  • Protective Enclosures: Available in various materials, including stainless steel, for environments requiring washdown or dust protection.
  • Speed Controllers: Offers manual or automated speed control options to match your operational requirements.
  • Power Cable Options: Different lengths and types of cables are available to suit various conveyor system layouts and distances.
  • Enhanced Bearings: Upgrade to premium sealed-for-life bearings for extended operational life in demanding environments.

    • Key Features

    • Space-Saving Design

    • Reduced Components

    • Adjustable Speed Control

    • Versatile Mounting

    • High-Torque Output

    Documentation

    No items found.
    Specification Details
    Power Options 90V DC, 115V-1PH AC, 230-460V-3PH AC
    Speed Control Variable speed range: 0 - 300 ft/min
    Load Capacity Up to 100 lbs (45.4 kg)
    Drive Type Direct or reversible drive configurations
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Washdown and high-precision settings
    Mounting Configurations Inline, bottom, and custom options
    Warranty 2-year unlimited hours, including bearings
