High Speed Drive Packages

Configuration Tool
Get a Quote

Description

Our High Speed Drive Packages deliver exceptional belt speeds from 400 ft/min up to 2000 ft/min and beyond, engineered specifically for demanding applications where speed directly impacts profitability. Available in both direct coupled inline and bottom mounted configurations, these premium drive systems provide the power and precision required for modern e-commerce fulfillment, automated sortation, and high-throughput manufacturing operations. With motor sizes from 1/4 HP to 1 HP and compatibility across 115V-1PH, 230/460-3PH, and Brushless DC power options, these drives represent the pinnacle of conveyor speed technology.

High-Speed Throughput

Built for the "blur stage," these drives process 200+ cartons per minute (up to 96,000 per 8-hour shift). Synthetic lubricants, enhanced bearings, and thermal management ensure reliable 24/7 performance.

Specifications

Features

Benefits

Options

  • Speed Range: 400-2000+ ft/min (customizable beyond 2000 ft/min for specialized applications)
  • Motor Power Options: 1/4 HP (400-600 ft/min), 1/2 HP (600-1000 ft/min), 1 HP (1000-2000+ ft/min)
  • Voltage Options: 115V-1PH, 230/460-3PH (recommended for optimal performance), Brushless DC
  • Mounting Configurations: Direct coupled inline or bottom mounted
  • Service Factor: 2.5-3.0 for ultra-high-speed applications
  • Operating Temperature: Up to 105°C (220°F) with synthetic lubricants
  • Efficiency Rating: 90%+ with VFD integration
  • Speed Regulation: ±0.1% with brushless DC option
  • Warranty: 2-year unlimited hours, including high-speed bearings
  • Advanced Thermal Management: Specialized cooling design maintains optimal operating temperatures even at 2000+ ft/min continuous operation
  • Precision Speed Control: Variable Frequency Drive (VFD) compatibility delivers 25-30% energy savings with precise speed matching to production demands
  • Ultra-High-Speed Bearings: Premium sealed bearings rated for 10,000+ hours at maximum speeds, with specialized lubrication systems
  • Flexible Power Options: Three-phase recommended for superior starting torque and speed regulation, with brushless DC available for ±0.1% precision control
  • Enhanced Sealing Systems: Multi-lip seals prevent contamination and lubricant loss at extreme speeds
  • Modular Mounting Design: Standard mounting packages ensure easy integration with existing conveyor systems
  • Maximize Throughput: Process 20,000+ items per hour in sortation applications, meeting same-day delivery demands
  • Reduce Energy Costs: 25-30% energy savings versus fixed-speed motors, with typical ROI in 18-36 months
  • Minimize Downtime: Soft start/stop capabilities reduce mechanical stress by 30-40%, extending component life
  • Improve Flexibility: Variable speed control allows instant adaptation to changing production demands without mechanical adjustments
  • Lower Total Cost of Ownership: Premium pricing justified by $15,000-50,000 annual energy savings for medium operations
  • Future-Ready Integration: Industry 4.0 compatible with IoT monitoring and predictive maintenance capabilities

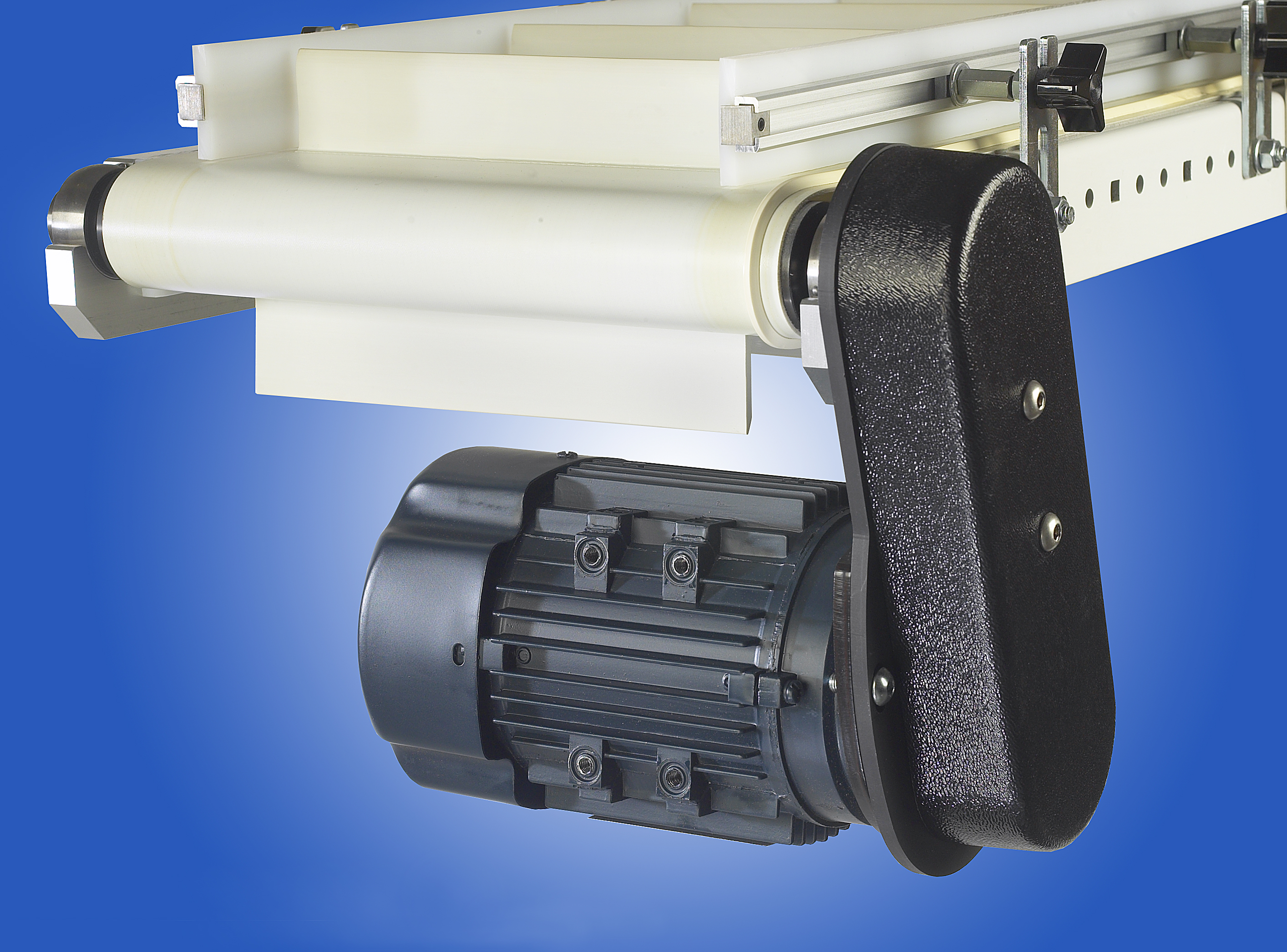

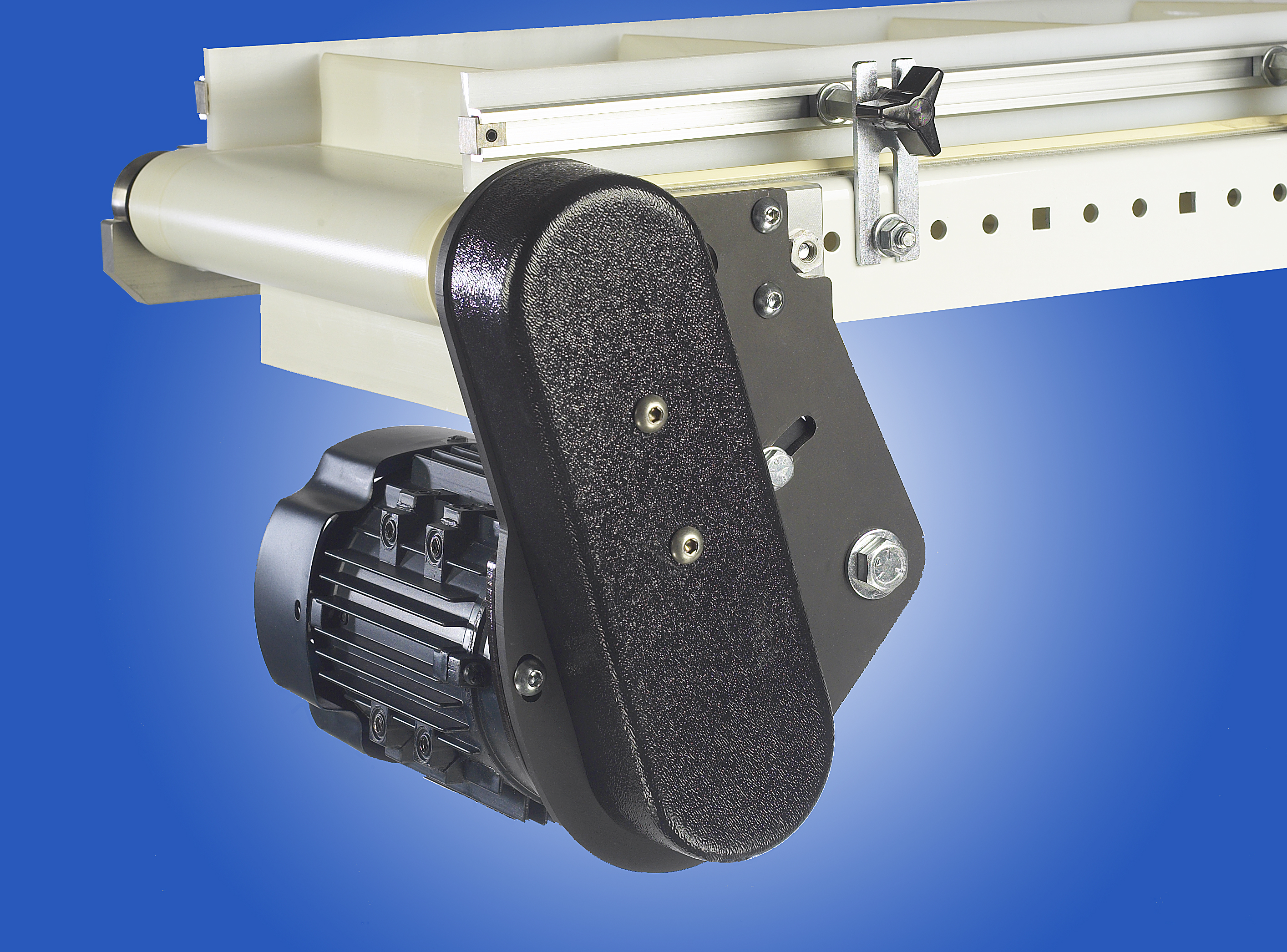

  • Bottom Mounted Configuration: Ideal for ultra-high speeds (1200-2000+ ft/min) with superior torque density up to 75,225 lb-in

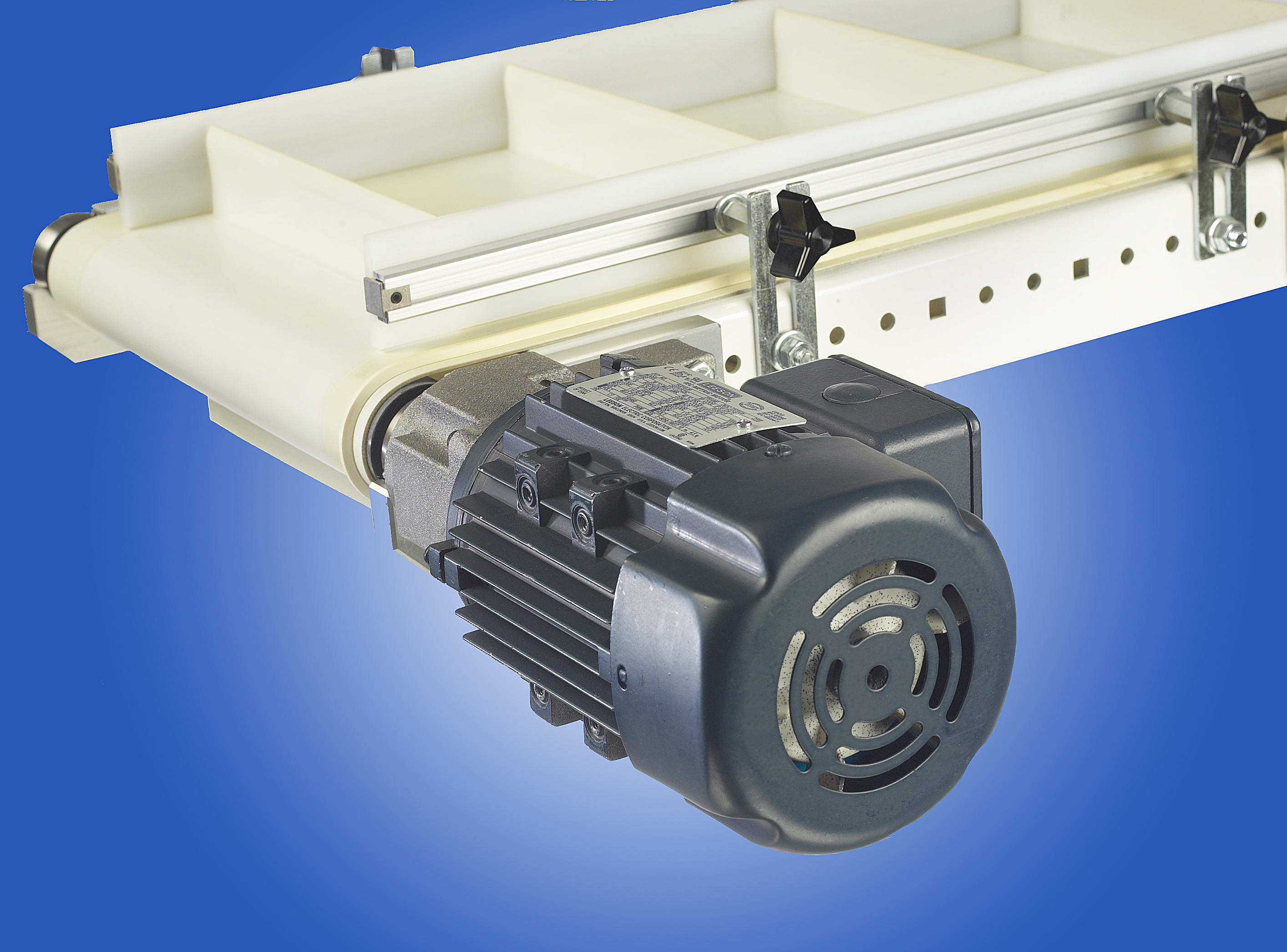

  • Inline Configuration: Space-saving design perfect for 400-1200 ft/min applications in constrained environments
  • Washdown Protection: USDA-compliant sealed units for food processing and pharmaceutical applications
  • Synthetic Lubrication Package: ISO VG 220 PAO-EP lubricants for sustained high-speed operation
  • Precision Control Package: Brushless DC motors with 20:1 constant torque range for exacting speed requirements
  • Condition Monitoring: Optional vibration and temperature sensors for predictive maintenance programs

    • Key Features

    • Extreme Speed Capability: Reliable operation from 400 to 2000+ ft/min for maximum throughput

    • Energy Efficient Design: VFD-compatible motors deliver 25-30% energy savings with 18-36 month payback

    • Application-Matched Solutions: Bottom mount for ultra-high speeds, inline for space-constrained installations

    • Premium Reliability: 2.5-3.0 service factor with specialized high-speed bearings rated for 10,000+ hours

    • Flexible Integration: Standard mounting packages compatible with existing conveyor systems

    Documentation

    No items found.
    Specification Details
    Speed Range 400 – 2000+ ft/min (customizable for specialized applications)
    Motor Sizes 1/4 HP, 1/2 HP, 3/4 HP, 1 HP
    Voltage Options 115 V 1-PH, 230/460 V 3-PH (recommended), Brushless DC
    Mounting Types Direct Coupled Inline, Bottom Mounted
    Torque Capacity Up to 75,225 lb-in (bottom-mounted configuration)
    Service Factor 2.5 – 3.0 for high-speed applications
    Operating Temperature -10 °C to 105 °C (14 °F to 220 °F)
    Efficiency Rating 90%+ with VFD integration
    Speed Regulation ±0.1% (Brushless DC option)
    Bearing Life 10,000+ hours at maximum speed
    Lubrication Synthetic ISO VG 220 PAO-EP for 1200+ ft/min
    Sealing Multi-lip high-speed seals
    Warranty 2-year unlimited hours including bearings
