Introduction

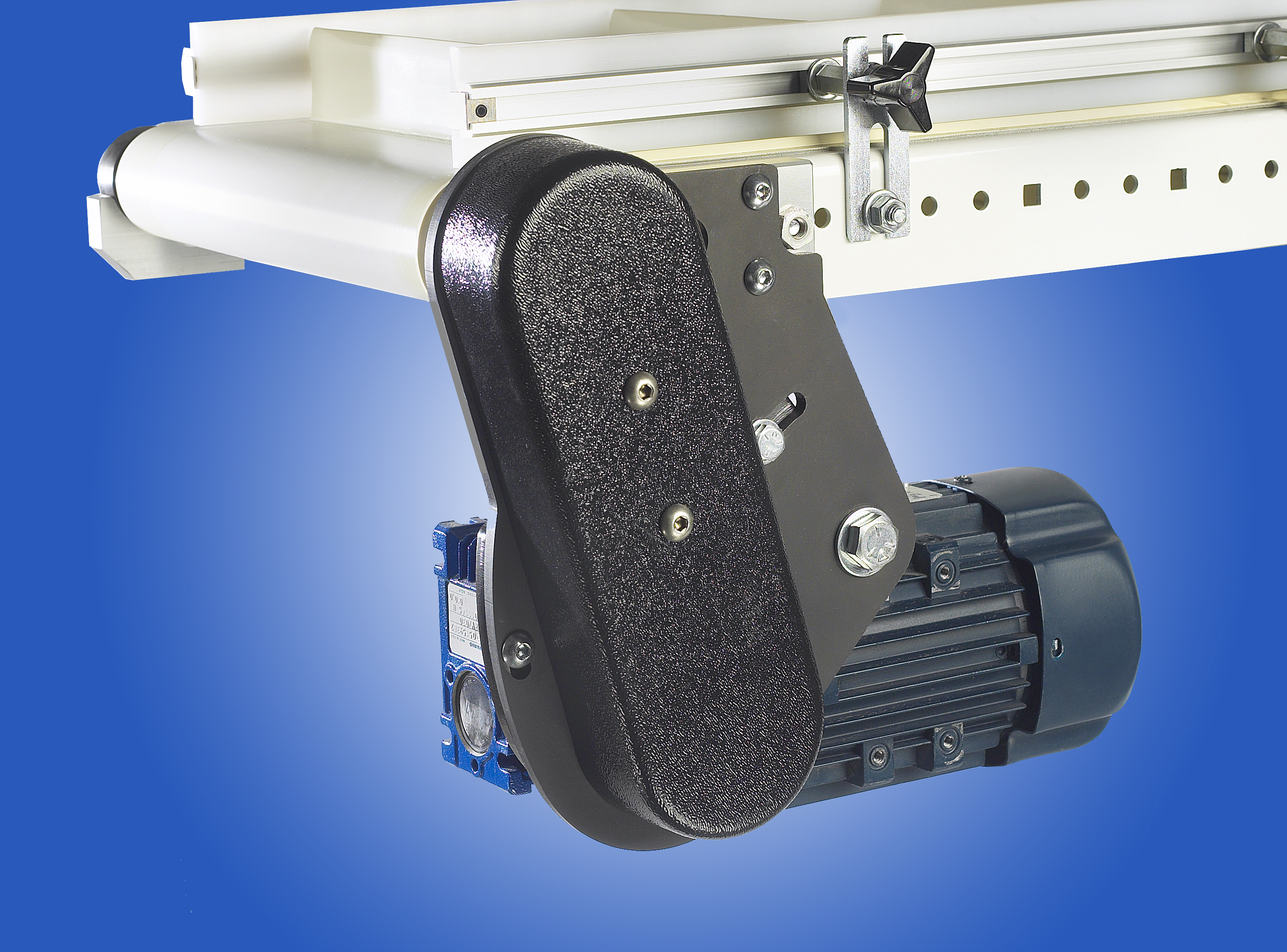

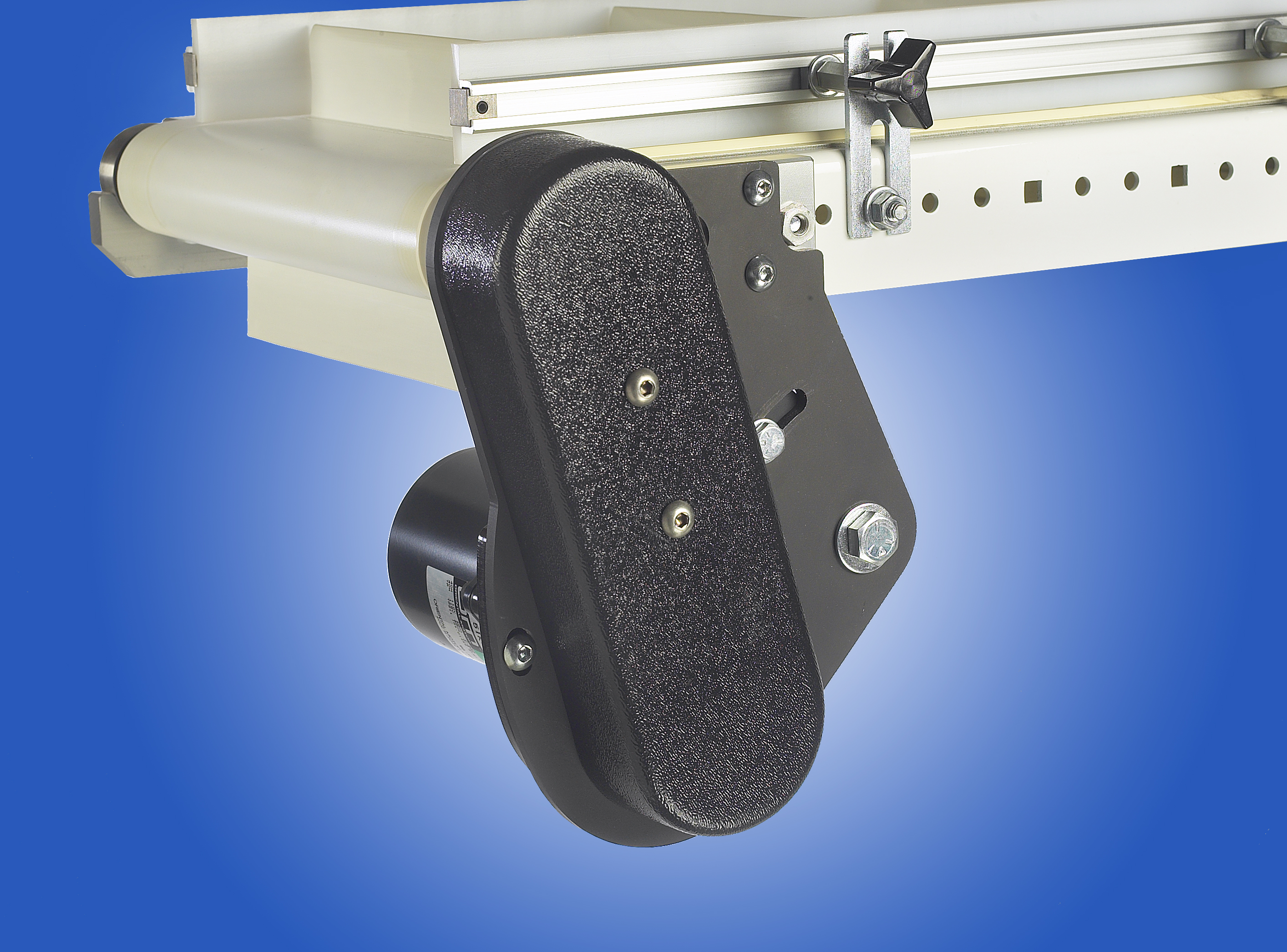

The Bottom Mounted Gear Motor offers a versatile and compact solution for conveyor applications. Designed for seamless integration with low-profile conveyors, this gear motor provides reliable performance and space-saving advantages.

Its bottom-mounting option ensures a clutter-free workspace, making it ideal for environments where floor space is at a premium.

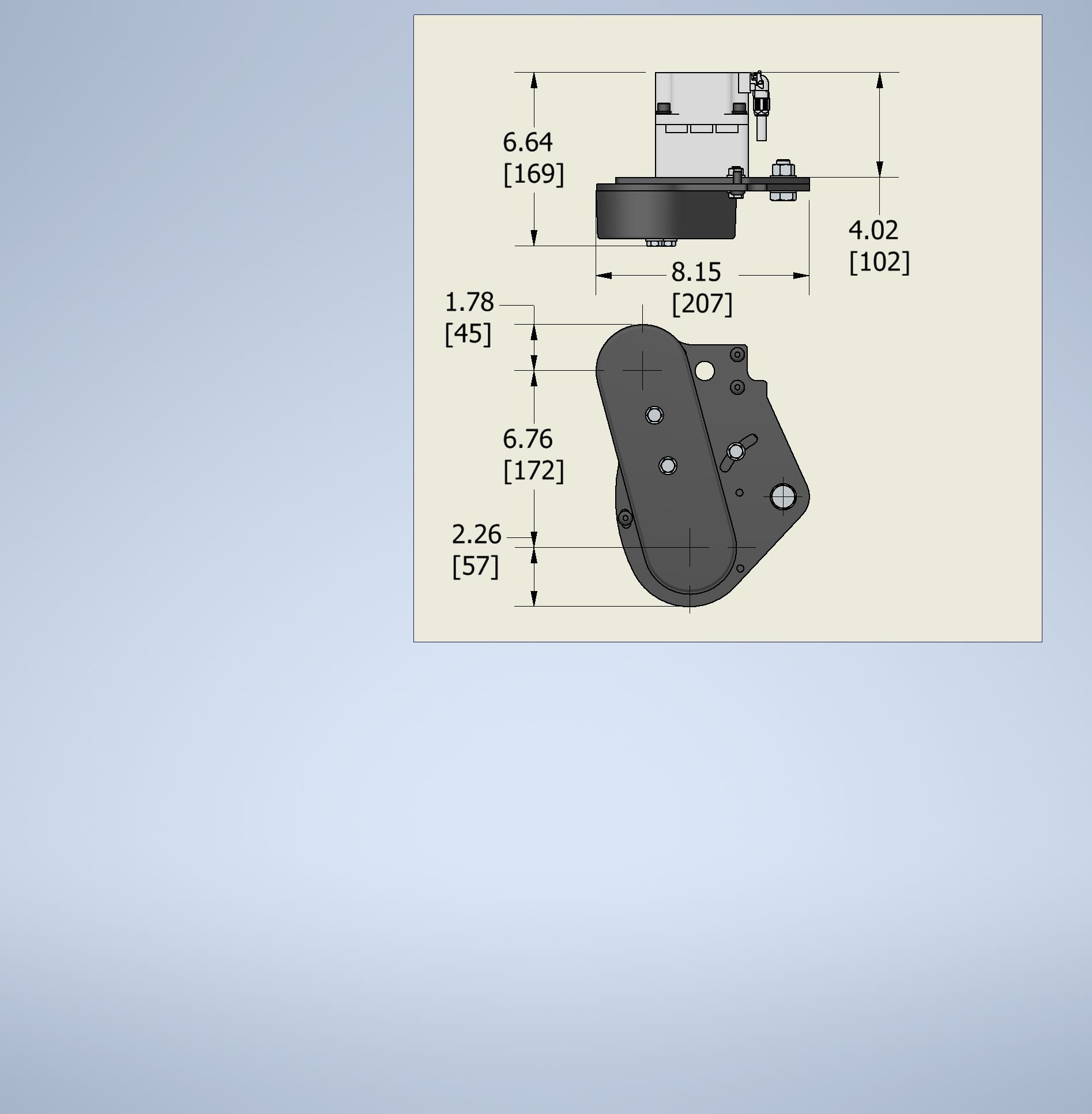

Compact Bottom-Mount Design

The Bottom Mounted Gear Motor is engineered for maximum space efficiency, fitting seamlessly under the conveyor frame. This design provides unobstructed access around the conveyor, reducing the footprint and improving operational workflow.

Specifications

Features

Benefits

Options

  • Power Options: 40W-90W Fixed Speed, 60W-120W Brushless DC Variable, 40W-90W Watertight Motors
  • Mounting Type: Bottom mounted for streamlined integration with conveyor frames
  • Material: Durable cast iron housing for maximum strength and durability
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Sealing: Sealed motor design to prevent ingress of dust and liquids
  • Motor Speed: Adjustable to meet a range of application requirements
  • Warranty: 2-year unlimited hours, including bearings
  • Space-Saving Mounting: Positioned beneath the conveyor, optimizing workspace and reducing obstructions.
  • Enhanced Durability: Made from high-strength materials to withstand heavy-duty industrial use.
  • Variable Speed Control: Adjustable speed settings for a wide range of applications.
  • Sealed Motor Design: Prevents ingress of dust and liquids, ensuring a longer operational life.
  • Maximized Floor Space: Bottom mounting design frees up valuable workspace, improving overall operational efficiency.
  • Reduced Maintenance: Sealed components require minimal upkeep, resulting in lower maintenance costs and reduced downtime.
  • Versatile Application: Suitable for a variety of conveyor systems, including those used in packaging, material handling, and assembly lines.
  • Brushless DC Variable Motors: For precise speed control in demanding applications.
  • Fixed Speed Motors: For consistent and reliable performance in standard operations.
  • Waterproof Motors: Available for environments requiring regular washdown or exposure to liquids.

    • Key Features

    • Compact Design: Engineered for use in confined spaces, maintaining optimal performance.

    • High Torque Output: Provides reliable, smooth operation for various conveyor applications.

    • Versatile Drive Options: Compatible with AC, DC, and brushless DC motors, adapting to different needs.

    • Sealed Bearings: Equipped with sealed-for-life components, minimizing maintenance requirements.

    • Easy Installation: Designed for quick integration into conveyor systems, reducing downtime.

    Documentation

    No items found.
    Specification Details
    Power Options 40W-90W Fixed Speed, 60W-120W Brushless DC Variable, 40W-90W Watertight Motors
    Mounting Type Bottom mounted for seamless integration with low-profile conveyors
    Material Powder-coated aluminum or stainless steel for durability
    Sealing Dust and liquid-resistant sealed design
    Motor Speed Adjustable speed range: 100-500 RPM
    Operating Temperature -10°C to 50°C (14°F to 122°F)
    Warranty 2-year unlimited hours
