Introduction

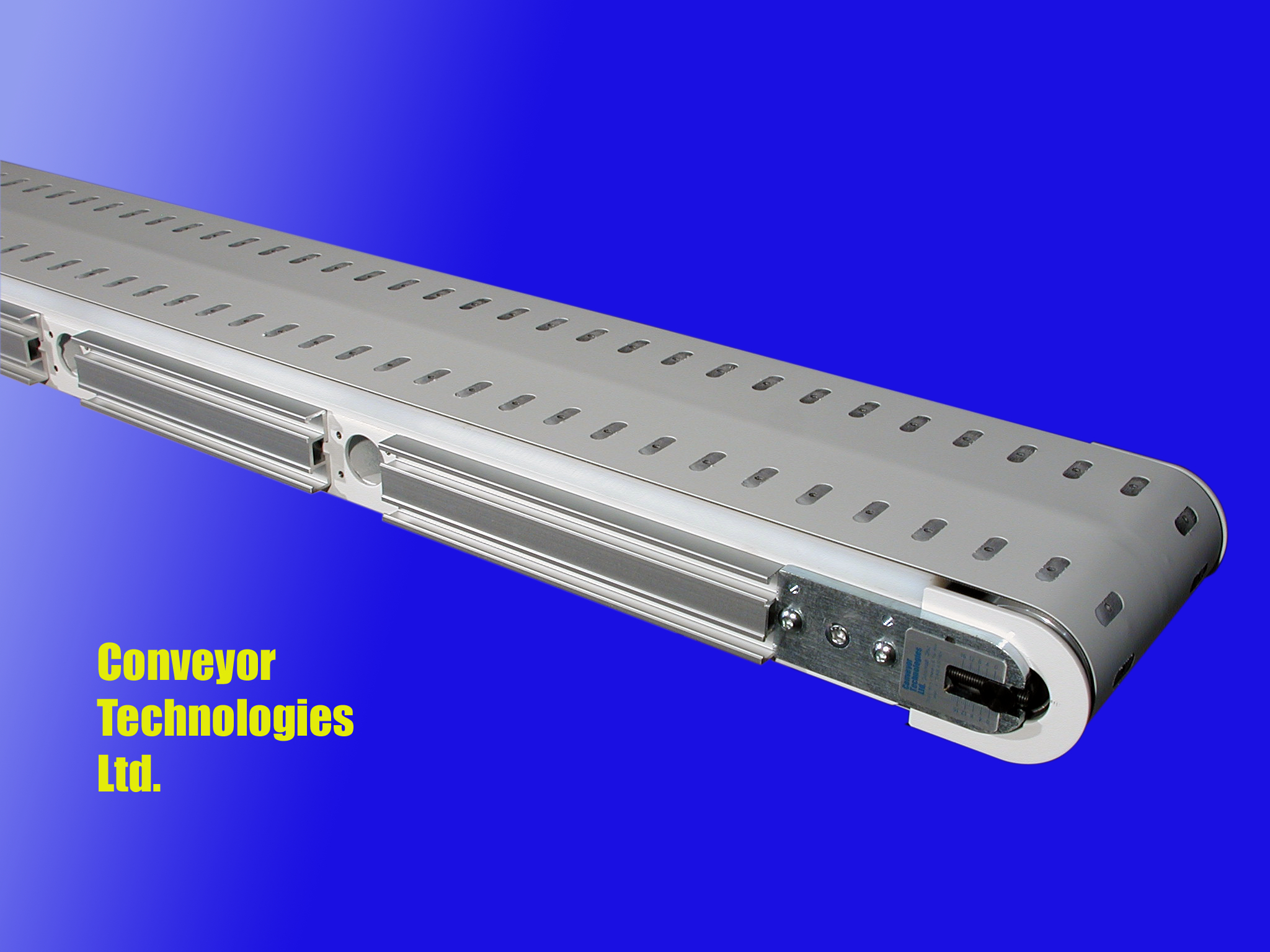

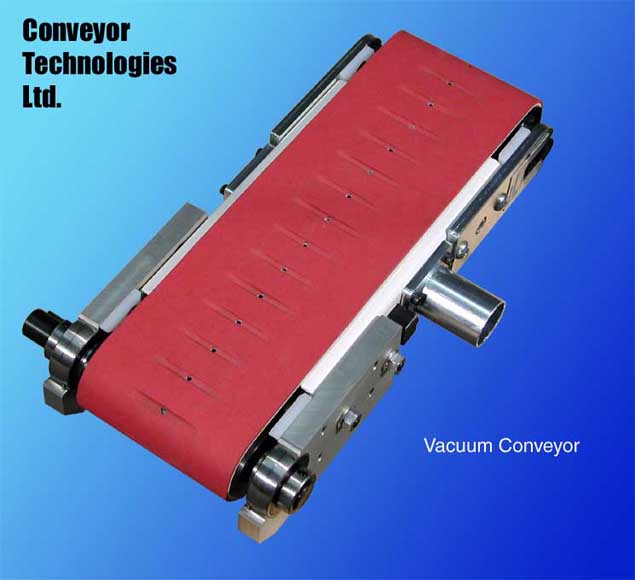

The Vacuum Conveyor offers precise material handling for applications requiring high grip and control.

Designed for transporting lightweight or unstable products, it uses a vacuum system to secure materials to the conveyor belt, ensuring stability during movement, even at high speeds.

It is ideal for industries such as packaging, automation, and cleanroom environments where product orientation and positioning are critical.

Vacuum Grip System

The vacuum system provides a high degree of stability for lightweight products, ensuring precise handling even on inclines or during rapid movements. This technology ensures consistent performance in delicate and demanding applications.

Specifications

Features

Benefits

Options

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (191mm),
  • 10" (250mm), 12" (305mm), 18" (457mm)
  • Conveyor Length Options: 2' (610mm) - 12' (3658mm)
  • Load Capacity: Up to 50 lbs (22.7 kg)
  • Belt Speed: Adjustable speed range of 100 to 500 ft/min
  • Drive Type: AC or DC motor, with reversible drive options
  • Frame Material: Powder-coated steel, aluminum or stainless steel for washdown applications
  • Operating Environment: Suitable for cleanroom, washdown, and high-precision environments
  • Warranty: 5-year unlimited hours, including bearings
  • High Precision Vacuum System: Provides consistent vacuum force to stabilize lightweight or fragile products during transport.
  • Modular Components: Easily customizable with add-ons like side guides and sensors for enhanced control.
  • Sealed-for-Life Bearings: Reduces maintenance and downtime, ensuring long operational life.
  • Reversible Drive: Allows for bi-directional transport, offering flexibility in various applications.
  • Quick Belt Replacement: The tool-free system enables fast belt changes, minimizing production delays.
  • Increased Stability: Vacuum system provides exceptional stability for products, reducing slippage and misalignment.
  • Enhanced Control: Ensures delicate or lightweight items remain secure during high-speed or inclined transport.
  • Low Maintenance: Sealed bearings and durable components minimize downtime and reduce operational costs.
  • Versatile Applications: Suitable for a variety of industries including packaging, automation, and medical manufacturing.
  • Energy Efficient: Optimized motor design lowers energy consumption while maintaining high performance.
  • Custom Lengths and Widths: Available upon request to meet specific space or operational requirements.
  • Side Guides: Optional side rails to ensure product stability during transport, customizable based on application needs.
  • Stands and Mounts: Optional stands and mounts to mount your conveyor in a wide selection of mounting options.
  • Sensors and Automation: Integrate sensors for product detection, automated controls for synchronized movement, or custom timing systems.

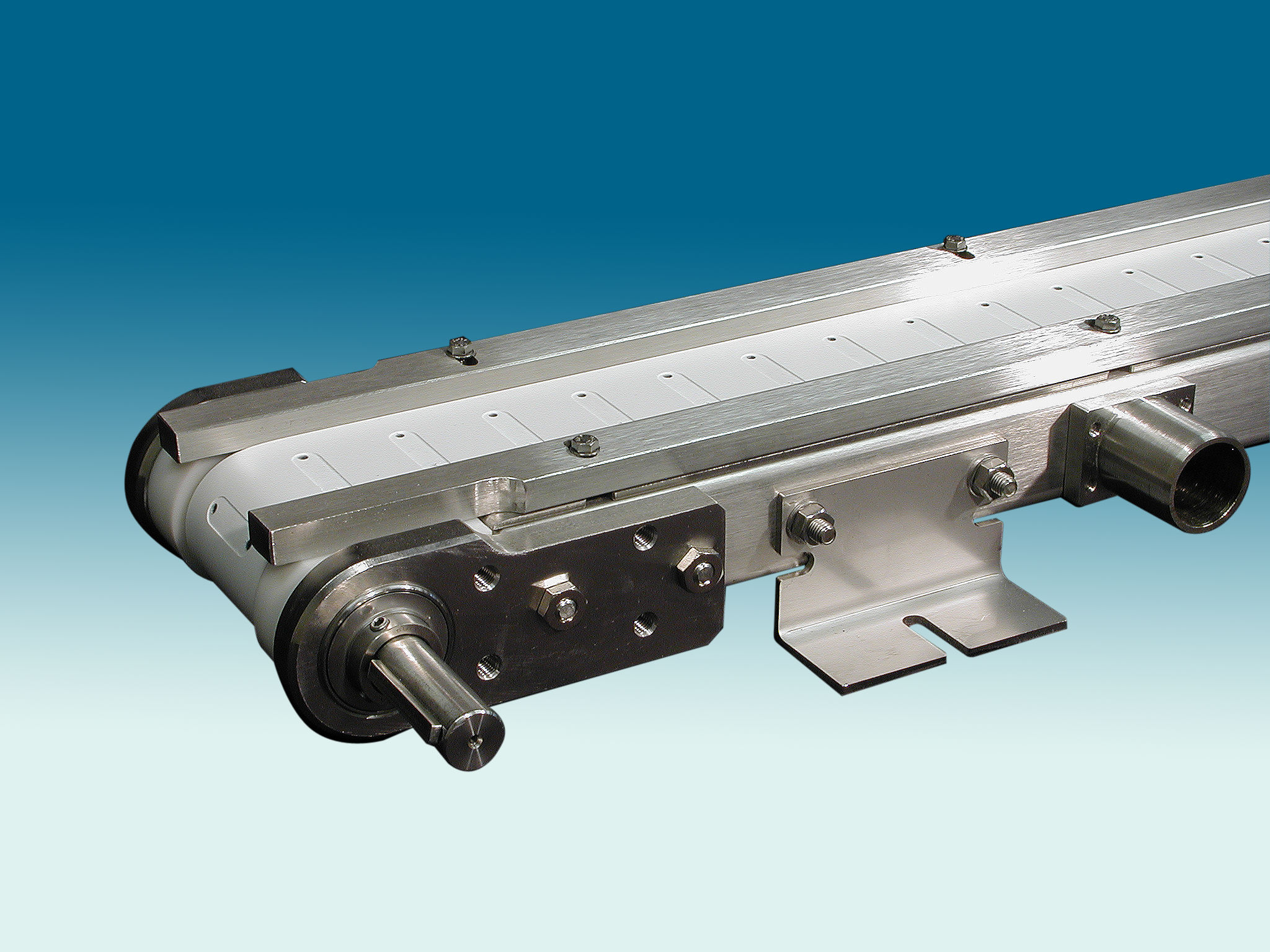

  • Washdown Ready: Stainless steel construction for environments requiring frequent cleaning or exposure to moisture.
  • Multiple Drive Configurations: Available with inline, bottom, Right Angle casting mount or shaft-mounted drive options for flexible installations.

    • Key Features

    • Vacuum Grip System

    • Adjustable belt speeds

    • Low maintenance, sealed-for-life components

    • Modular, customizable design

    • Energy-efficient drive systems

    Documentation

    No items found.
    Specification Details
    Belt Width Options 2.5" (63mm), 4.5" (114mm), 6.0" (152mm), 10" (250mm)
    Conveyor Length Options 2' (610mm), 4' (1219mm), 6' (1829mm), 10' (3048mm)
    Load Capacity Up to 50 lbs (22.7 kg)
    Belt Speed Adjustable speed range of 100 to 500 ft/min
    Drive Type AC or DC motor, with reversible drive options
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Suitable for cleanroom, washdown, and high-precision environments
    Warranty 2-year unlimited hours
