Introduction

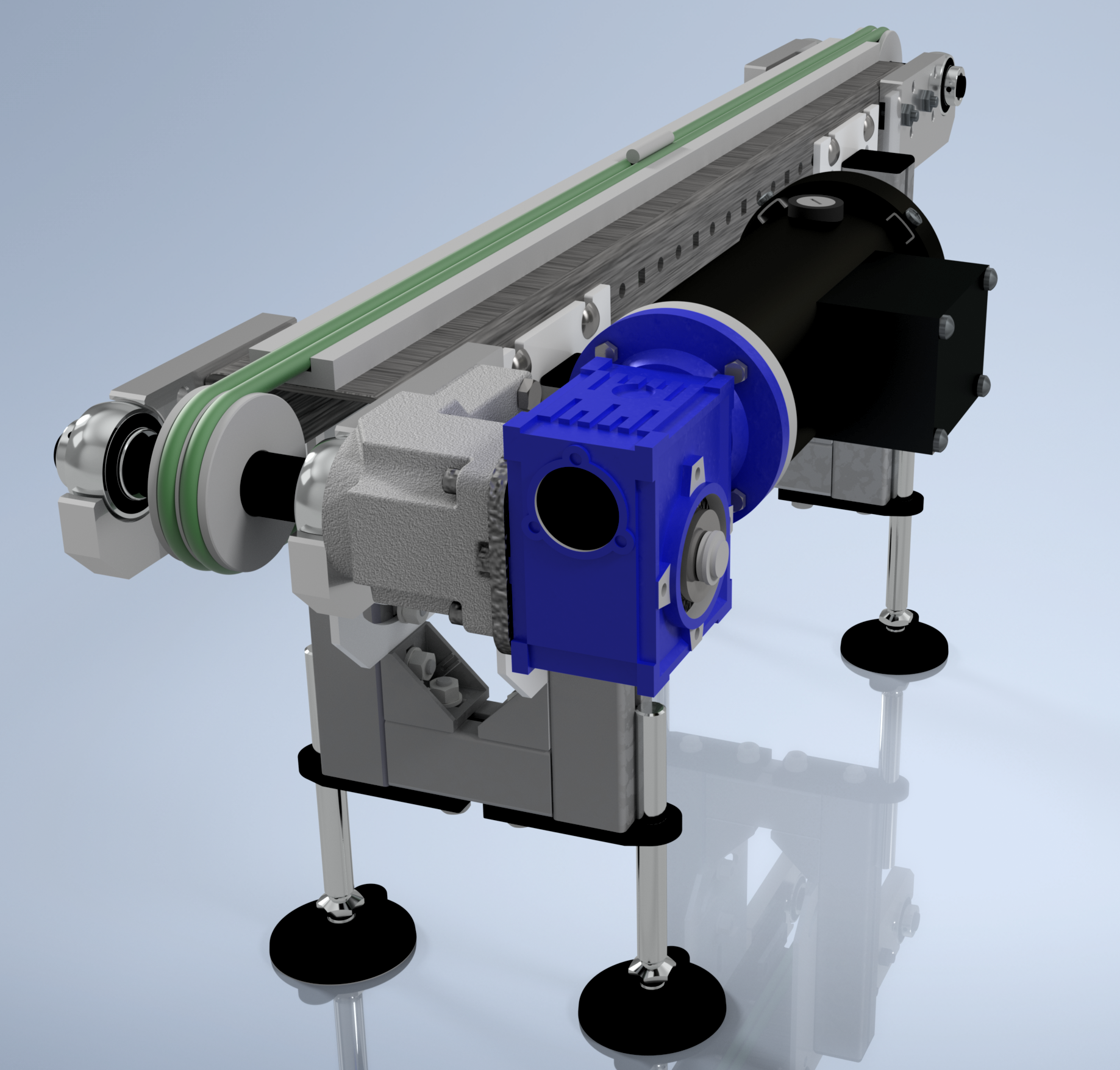

The Round Belt Conveyor is engineered to efficiently handle small, unstable products with precision and consistency. Designed for applications where part positioning is critical, this conveyor provides enhanced product stability, making it ideal for cleanroom environments, vision inspection systems, and areas requiring minimal surface contact. Its dual-track design allows for smooth transitions, consistent speed control, and minimized product contamination, while the solid urethane belts offer excellent chemical and abrasion resistance.

Whether in drying processes, sensitive manufacturing applications, or high-speed production lines, the Round Belt Conveyor delivers reliable, self-tracking performance for even the most delicate operations.

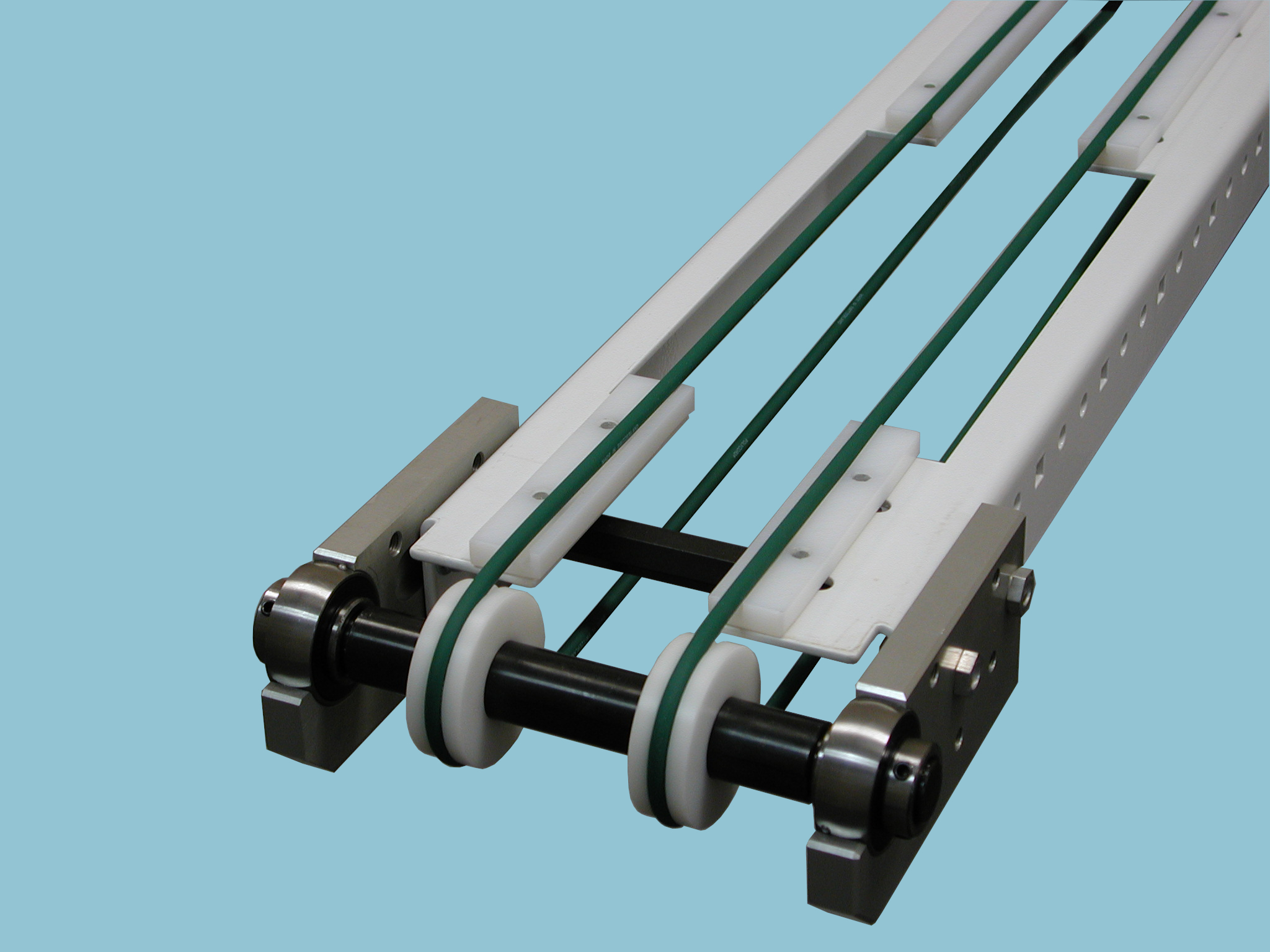

Self-Tracking Urethane Belt System

The solid urethane round belts provide superior tracking without the need for adjustments, ensuring high precision, minimized downtime, and reduced maintenance across both directions of travel.

Specifications

Features

Benefits

Options

  • Belt Width Options: Customizable to accommodate a wide range of product sizes.
  • Conveyor Length Options: Available in lengths from 2' to 10', with custom lengths available upon request.
  • Load Capacity: Up to 50 lbs (22.7 kg), depending on the application.
  • Belt Speed: Adjustable speed range of 0 to 250 ft/min.
  • Frame Material: Powder-coated steel, aluminum or stainless steel for washdown applications.
  • Operating Environment: Suitable for cleanroom, dry, or abrasive environments.
  • Warranty: 5-year unlimited hours, including bearings.

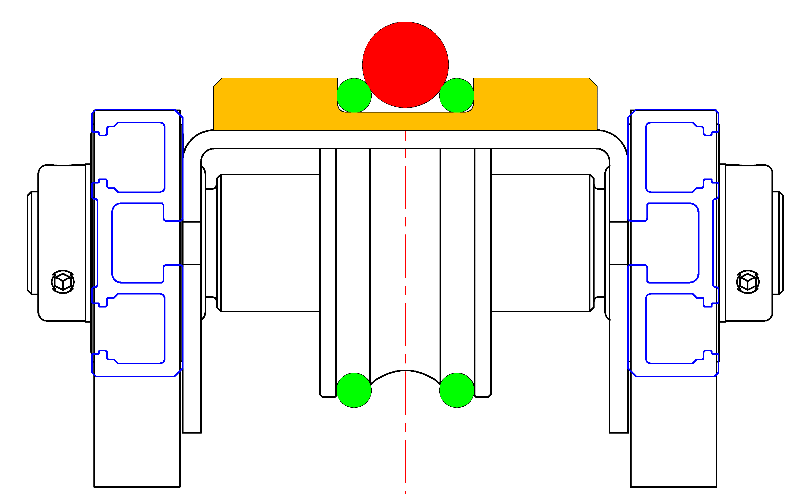

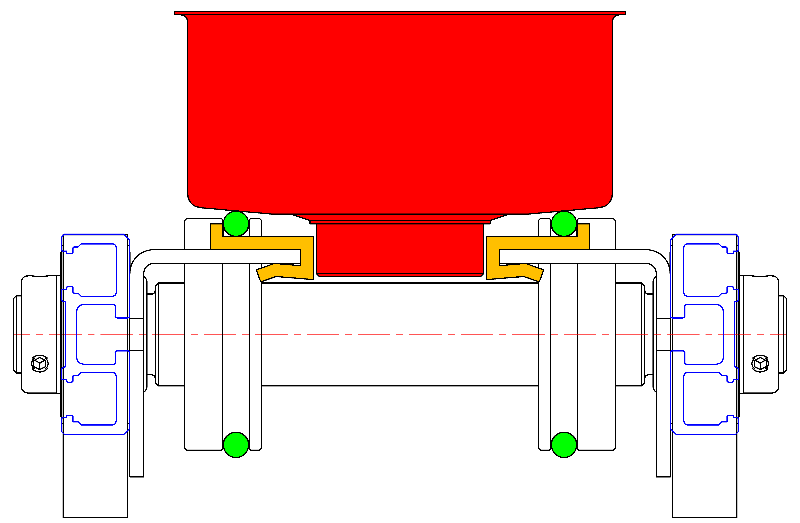

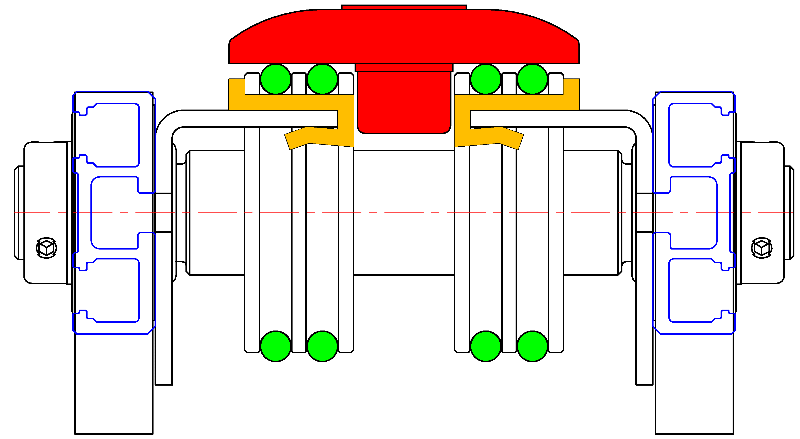

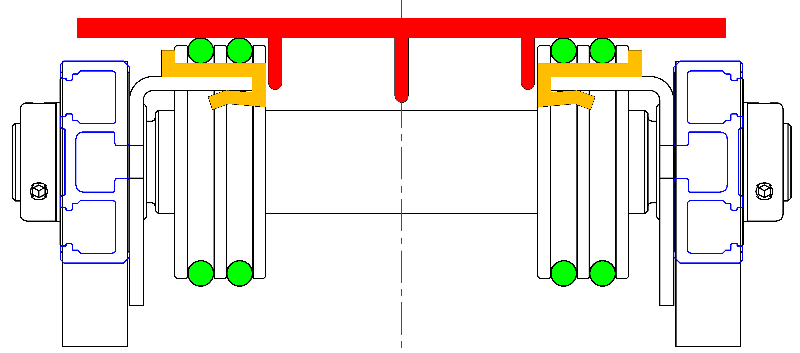

  • Dual-Track Design: Provides enhanced stability for handling small or delicate products that require precise positioning.
  • Self-Tracking Belts: The round urethane belts automatically track without adjustments, allowing for smooth bi-directional operation.
  • Open Surface Access: Minimal belt surface contact ensures clean and unobstructed access for vision inspection, printing, or other applications.
  • Multiple Section Transitions: The conveyor can be easily configured for smooth product transitions across sections or varying speeds.
  • Durable Urethane Construction: The belts are constructed from solid urethane, offering high chemical and abrasion resistance without requiring tension adjustments.
  • High Product Stability: Ensures reliable transportation of small or unstable products in production lines with minimal vibration or part movement.
  • Low Maintenance: Self-tracking belts eliminate the need for frequent adjustments, reducing downtime and maintenance costs.
  • Contamination-Free Conveying: The minimal surface contact reduces the risk of contamination, making it perfect for cleanroom and sensitive applications.
  • Versatile Applications: Suitable for a wide range of industries including medical, food, and electronics manufacturing, where cleanliness and precision are key.
  • Custom Lengths and Widths: Available for unique production needs.

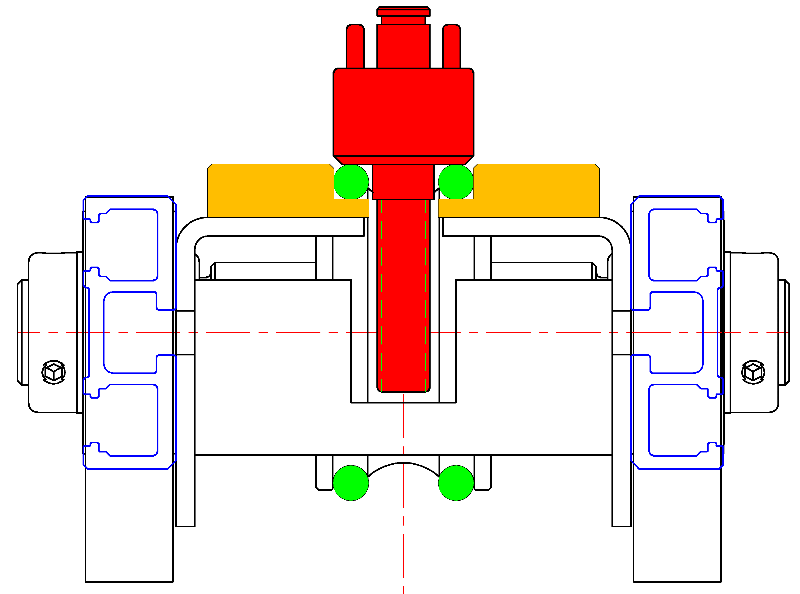

  • Part Holders and Custom Guides: For precise positioning during transport.
  • Washdown Ready: Stainless steel construction for environments requiring frequent cleaning or exposure to moisture.
  • Sensors and Automation: Optional add-ons for product detection, speed control, and other automation solutions.

    • Key Features

    • Dual-track design for increased product stability

    • Self-tracking, low-maintenance belts

    • Minimal belt contact, ideal for cleanroom applications

    • Chemical and abrasion-resistant urethane construction

    • Suitable for high-speed conveying and drying processes

    Documentation

    No items found.
    Specification Details
    Belt Width Options Customizable
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm)
    Load Capacity Up to 50 lbs (22.7 kg)
    Belt Speed 10 to 250 ft/min
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Cleanroom, dry, or abrasive environments
    Warranty 2-year unlimited hours
