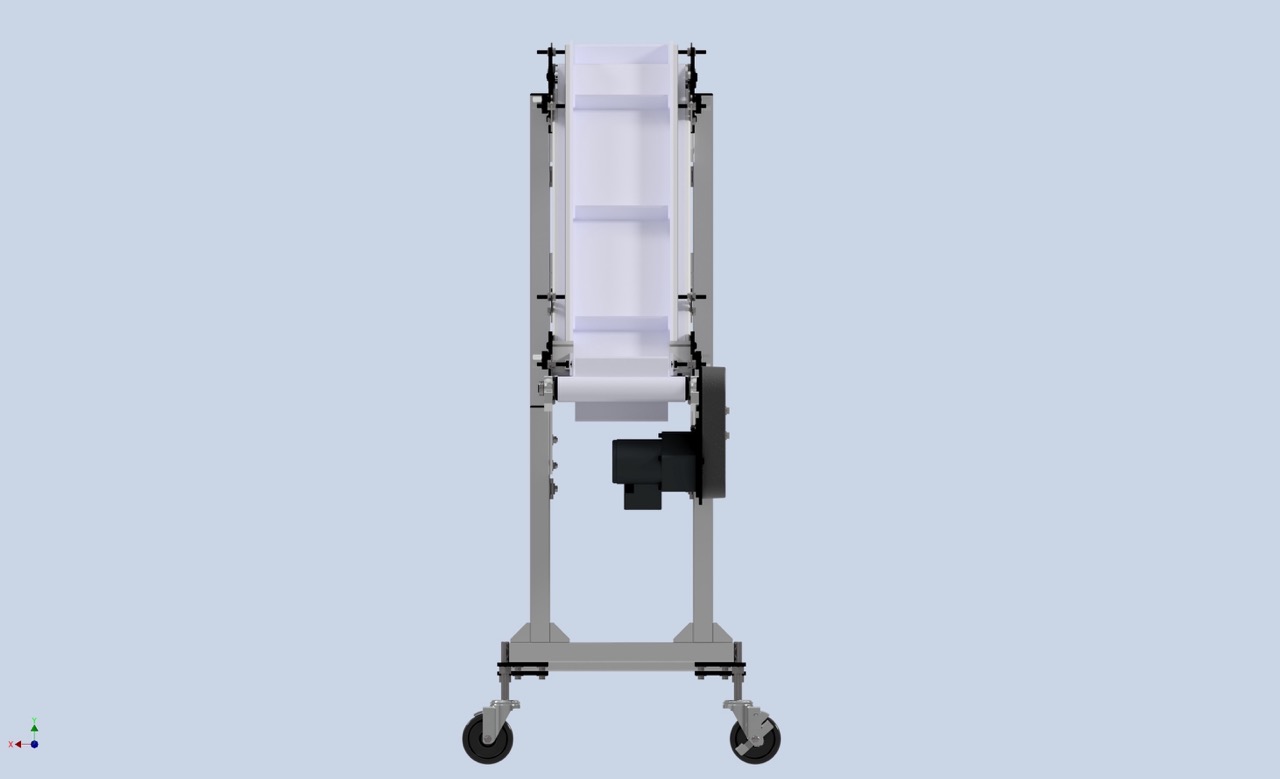

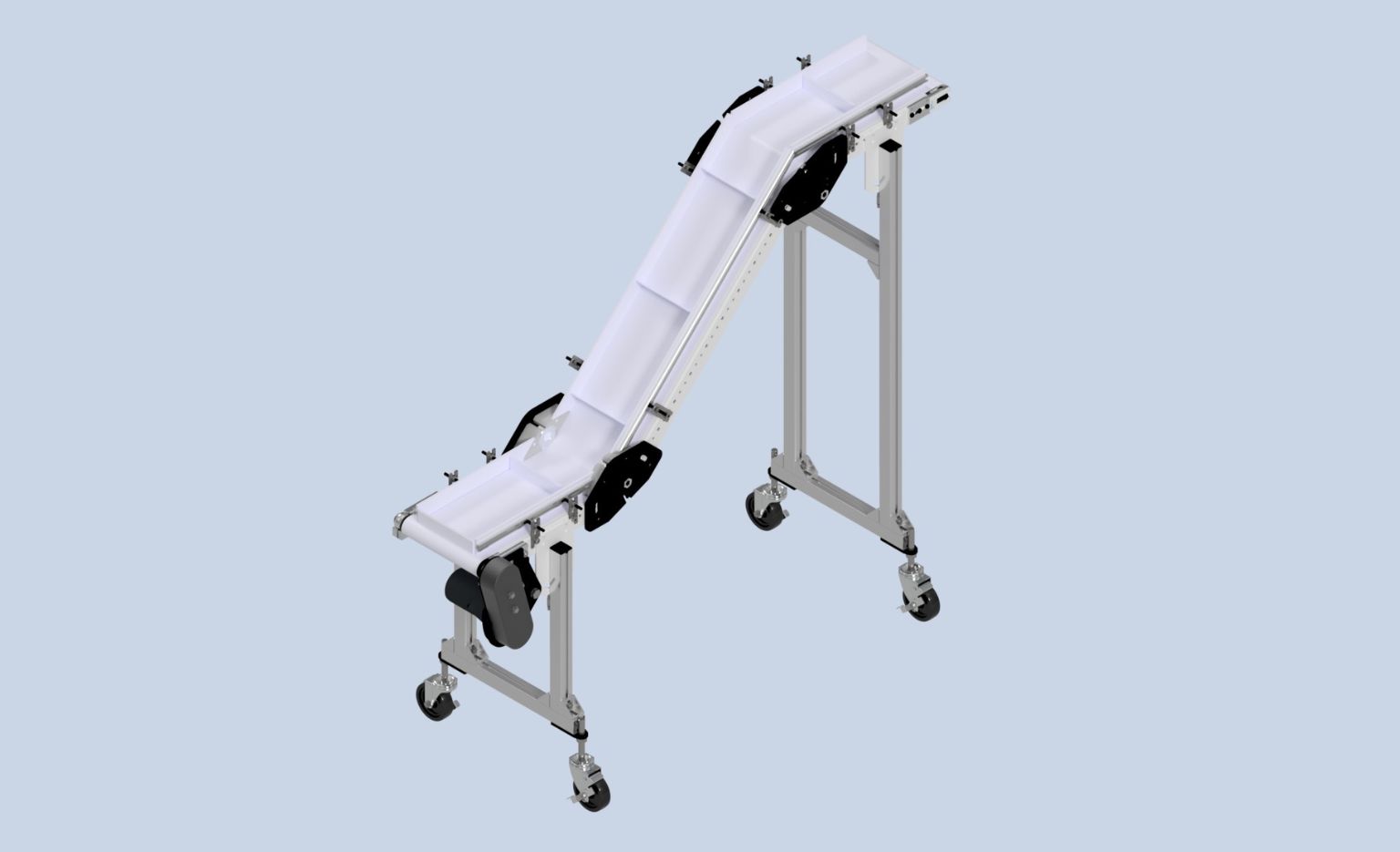

The Multi-Flex VSC (Variable Shape Conveyor) system provides modular angled conveying for elevation changes and directional transitions. Available in "S" and "T" Series, these conveyors assemble into eight configurations for horizontal-to-incline, incline-to-horizontal, and combination elevation applications.

Belt widths range from 7.5" to 24" with load capacity up to 200 lbs depending on configuration. The system accommodates changing production layouts and space constraints while maintaining precise belt tracking through self-cleaning roller vee guides and sealed maintenance-free bearings.

Modular Frame Configuration

Three IO GA steel frame sections position independently at 30°, 45°, or 60° angles with ±7.5° fine-tuning. Each section shortens in 3" increments, enabling exact dimensional fit without custom fabrication. Maximum system length of 300" provides flexibility for extended material flow paths while maintaining compact installation profiles.

Specifications

Features

Benefits

Options

  • Available Configurations: HIO, IHO, HIH, IHD, DHO, HDO, HDH, DHI
  • Series Options: "S" Series and "T" Series
  • Frame Construction: (3) IO GA single-piece steel frame sections, randomly repositionable
  • Assembly Angles: 30°, 45°, 60° (adjustable ±7.5°)
  • Belt Width Options: 7.5", 10", 12", 18", 24"
  • Load Width Comparison: Rigid Side Style provides 2.12" greater load width than Flex Side Style on same size conveyor
  • Belt Cleat Options: R20 (20mm Rigid), R25 (25mm Rigid), R40 (40mm Rigid), R60 (60mm Rigid), F25 (25mm Flex)
  • Frame Height Range: 4" to 120" (configuration and cleat dependent)
  • Maximum Total Length: 300" (A1 + B + A3), shortenable in 3" increments
  • Load Capacity: Up to 200 lbs (varies by type, width, and angle - typical Type HIH, 12" wide at 45° is 200 lbs)
  • Frame Material: .31" steel plate, powder-coated or stainless steel
  • Drive Options: Fixed or variable speed
  • Operating Environment: Standard manufacturing, cleanroom, washdown
  • Warranty: 10-year unlimited hours, 5-years on bearings, 2 years on drive packages
  • Eight Configurations: HIO, IHO, HIH, IHD, DHO, HDO, HDH, DHI for varied elevation and direction requirements
  • Modular Frame Sections: Three IO GA steel sections repositionable for custom configurations
  • Adjustable Angles: Standard 30°, 45°, 60° with ±7.5° fine adjustment
  • Roller Vee Guide: Self-cleaning, wear-resistant tracking through transitions
  • Knurl-Free Pulleys: Eliminates belt surface damage
  • Dual Tee Slot Rails: Optional mounting system on "T" Series for guides and sensors
  • Reversible Drive: Drive and tail pulley positions interchangeable
  • Tool-Less Belt Access: Quick belt removal without tools
  • Sealed Bearings: Maintenance-free, prevents product contamination
  • Guard/Wiper System: Protects hold-down roll zone from debris
  • .31" Steel Plates: Enhanced frame rigidity for belt stability
  • Quick Tension/Tracking: Simplified adjustment system
  • High-Lateral Stiffness Belt: Improved cleat life (up to 50%)
  • Calibration Plates: Accurate belt setting and repositioning
  • Quick Assembly: Offers industry's quickest assembly
  • No Lubricant Contamination: Sealed-for-life bearings ensure clean operation
  • Eliminated Return Wear: Belt wear on return eliminated through design
  • Greater Load Width: Rigid Side Style provides 2.12" greater effective load width than Flex Side Style
  • Selectively Adjustable Sections: Sections can be assembled up or down 7.5°
  • Flexible Routing: Eight configurations handle complex elevation and direction changes
  • Compact Installation: Navigates space constraints and obstacles
  • Reduced Maintenance: 10-year warranty, sealed bearings, eliminated return wear
  • Quick Reconfiguration: Modular design adapts to layout changes
  • Extended Belt Life: Improved cleat life up to 50%, eliminated return wear
  • Minimal Downtime: Tool-less belt access, quick assembly
  • Clean Operation: Sealed bearings prevent contamination, self-cleaning guides
  • Precise Integration: Calibration plates and angle adjustments enable exact positioning
  • Greater Load Width: Maximized usable belt surface, Rigid Side provides 2.12" additional load width
  • Adjustable in 3" Increments: Custom lengths without full frame replacement
  • Industry-Leading Warranty: 10-year unlimited hours provides confidence and reduces long-term costs
  • Greatly Reduced Maintenance Costs: Sealed-for-life components minimize service requirements
  • Custom Frame Lengths: Shortenable in 3" increments (300" max total)
  • Series Selection: "S" Series or "T" Series
  • Dual Tee Slot Rails: "T" Series option for mounting accessories
  • Variable Speed Drive: Precise speed control
  • Belt Cleats: 20mm, 25mm, 40mm, 60mm rigid; 25mm flex
  • Belt Widths: 7.5", 10", 12", 18", 24"
  • Belt Side Styles: Rigid Side or Flex Side (Rigid provides 2.12" greater load width)
  • Angles: 30°, 45°, 60° (each ±7.5° adjustable)
  • Configurations: HIO, IHO, HIH, IHD, DHO, HDO, HDH, DHI
  • Washdown Construction: Stainless steel for wet environments
  • Mounting: Stands or casters
  • Electrical: Custom voltage, phase, hertz
  • Product Guides: Modular mounting system for part control

    • Key Features

    • 10-year unlimited hours warranty

    • Eight angled configurations (HIO-DHI)

    • Tool-less belt removal system

    • Up to 50% improved cleat life

    • Sealed maintenance-free bearings

    Documentation

    Multi-Flex VSC Variable Shape Conveyors

    Frame Section Selection

    Nominal Frame Section Length A1 - A3 Actual Value (inches) B Actual Value (inches)
    .024 22.06 / 22.38 Angle dependent
    .036 34.06 / 34.38 See documentation
    .048 46.06 / 46.38 for complete
    .060 58.06 / 58.38 specifications
    .072 70.06 / 70.38 by angle
    .084 82.06 / 82.38 selection
    .096 94.06 / 94.38 —
    .108 106.06 / 106.38 —
    .120 118.06 / 118.38 —

    Note: Frame sections shorten in 3" increments. Maximum total length (A1 + B + A3) ≤ 300". Actual Frame Section Values shown provide the most economical pricing.

    Belt Selection

    Belt Cleat No. Cleat Height Belt Side Style
    R20 20 MM RIGID
    R25 25 MM RIGID
    R40 40 MM RIGID
    R60 60 MM RIGID
    F25 25 MM FLEX

    Width Selection

    Load Width 7.5" 10" 12" 18" 24"
    Dimension A (inches) 7.5 9.5 — 15.5 21.5
    Dimension B (inches) 5.38 7.38 13.38 — 19.38
    Belt Side Type FLEX FLEX FLEX FLEX FLEX

    Note: Types IHO, IHD, HDO have load width equal to belt width under certain conditions. Flex Sides are commonly used when conveying particles approximately the size of a MM sphere, or smaller. Rigid Side Style provides a load width 2.12" greater than Flex Side Style on the same size conveyor.

    30° Angle Configuration

    Nominal Frame Section Length A1 ~ A3 B RISE A2
    .024 22.06 / 22.38 11,19 19,38 2,08
    .036 34.06 / 34.38 17,19 29,77 4,45
    .048 46.06 / 46.38 23,19 40,17 6,01
    .060 58.06 / 58.38 29,19 50,56 7,58
    .072 70.06 / 70.38 35,19 60,95 9,15
    .084 82.06 / 82.38 41,19 71,35 10,71
    .096 94.06 / 94.38 47,19 81,74 12,28
    .108 106.06 / 106.38 53,19 92,13 13,84
    .120 118.06 / 118.38 59,19 102,52 15,41

    Rise and A2 Change/3° or 6 Reduction: 1,5 / 2,60

    45° Angle Configuration

    Nominal Frame Section Length A1 ~ A3 B RISE A2
    .024 22.06 / 22.38 15,83 15,83 2,08
    .036 34.06 / 34.38 24,31 24,31 4,45
    .048 46.06 / 46.38 32,80 32,80 6,01
    .060 58.06 / 58.38 41,28 41,28 7,58
    .072 70.06 / 70.38 49,77 49,77 9,15
    .084 82.06 / 82.38 58,25 58,25 10,71
    .096 94.06 / 94.38 66,74 66,74 12,28
    .108 106.06 / 106.38 75,22 75,22 13,84
    .120 118.06 / 118.38 83,71 83,71 15,41

    Rise and A2 Change/3° or 6 Reduction: 2,12 / 2,12

    60° Angle Configuration

    Nominal Frame Section Length A1 ~ A3 B RISE A2
    .024 22.06 / 22.38 19,38 11,19 2,08
    .036 34.06 / 34.38 29,77 17,19 4,45
    .048 46.06 / 46.38 40,17 23,19 6,01
    .060 58.06 / 58.38 50,56 29,19 7,58
    .072 70.06 / 70.38 60,95 35,19 9,15
    .084 82.06 / 82.38 71,35 41,19 10,71
    .096 94.06 / 94.38 81,74 47,19 12,28
    .108 106.06 / 106.38 92,13 53,19 13,84
    .120 118.06 / 118.38 102,52 59,19 15,41

    Rise and A2 Change/3° or 6 Reduction: 2,60 / 1,5
