Introduction

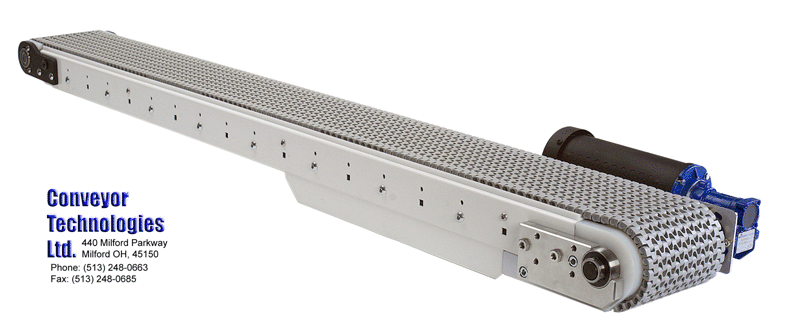

The MPB Optimizer is a modular plastic belt conveyor designed for highly efficient, reliable, and hygienic material handling. Its modular design is ideal for industries such as food processing, packaging, and pharmaceuticals, where hygiene and quick maintenance are critical. The MPB Optimizer delivers smooth and consistent performance while offering easy belt replacements, minimizing production downtime.

Whether you need precise product handling or bulk material transfer, the MPB Optimizer provides a flexible and durable solution, ensuring reliable operations with minimal maintenance needs.

Modular Plastic Belt System

The MPB Optimizer’s modular belt system allows for quick cleaning and belt changes, minimizing downtime and maximizing uptime. Built with food-grade and washdown-ready materials, it offers superior hygiene and durability in environments where sanitation is essential.

Specifications

Features

Benefits

Options

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
  • Conveyor Length Options: 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm)
  • Load Capacity: Up to 300 lbs (136 kg)
  • Belt Speed: Adjustable speed range from 50 to 450 ft/min
  • Drive Type: AC or DC motor with reversible options available
  • Frame Material: Powder-coated aluminum or stainless steel for washdown applications
  • Operating Environment: Cleanroom, washdown, food-grade, and high-temperature environments
  • Warranty: 2-year unlimited hours, including bearings
  • Modular Design: The belt system allows for easy replacement and cleaning, minimizing downtime.
  • Hygienic Materials: Designed with food-grade materials for environments where hygiene is crucial.
  • Energy-Efficient Operation: Motor options reduce energy consumption without sacrificing performance.
  • High Load Capacity: Can handle up to 300 lbs, making it versatile for various industries.
  • Reversible Drive: Allows for bi-directional movement, providing flexibility in product handling.
  • Quick Maintenance: Modular design enables rapid belt changes, reducing overall downtime.
  • Sanitation-Friendly: Built with washdown-ready materials, making it ideal for food, pharmaceutical, and packaging environments.
  • Durable and Long-Lasting: Engineered with high-quality materials that ensure long-lasting performance in harsh industrial environments.
  • Flexible Configuration: Available with customizable widths and lengths to suit your production needs.
  • Custom Lengths and Widths: Can be tailored to specific operational requirements.
  • Side Rails: Optional side guides for added product stability.
  • Part Holders: Customizable part holders for precise product handling.
  • Sensors and Automation: Sensors for product detection and automation for integrated control systems.
  • Washdown-Ready Construction: Stainless steel frame for environments that require frequent cleaning.

    • Key Features

    • Modular Plastic Belt System: Easy to clean and replace

    • Food-Grade Construction: Designed for hygienic environments

    • Quick & Easy Belt Replacement: Change belts in minutes without tools

    • Energy-Efficient Drive System: Low energy consumption while maintaining high performance

    • Customizable Configuration: Available with various widths and lengths

    Documentation

    Modular Belt Brochure
    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm)
    Load Capacity Up to 300 lbs (136 kg)
    Belt Speed Adjustable speed range of 50 to 450 ft/min
    Drive Type AC or DC motor, with reversible drive options
    Frame Material Powder-coated aluminum or stainless steel for washdown applications
    Operating Environment Suitable for cleanroom, washdown, and food-grade environments
    Warranty 2-year unlimited hours, including bearings
    Custom Lengths & Widths Available upon request to meet unique operational needs
    Quick Belt Replacement Tool-free belt changes in minutes, minimizing downtime

    Ready to Discuss Your Conveyor Needs?

    Get engineering support for custom applications or build your own system configuration online for immediate pricing.

    Talk with an expertCustomize a Quote
