Introduction

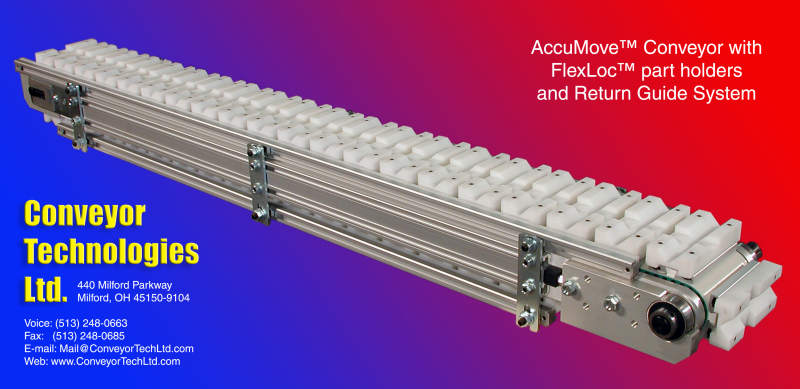

The FlexLoc™ Conveyor integrates an advanced part holder system that offers enhanced precision, accuracy, and versatility for assembly and vision inspection applications. The unique design preloads the holder against the belt, significantly improving durability and accuracy over welded profiles. With easily removable holders and sub-plates, the FlexLoc™ system supports rapid tool-free part holder changeovers and can accommodate a range of parts and sizes. This makes it an ideal solution for industries requiring high precision and flexibility in part positioning.

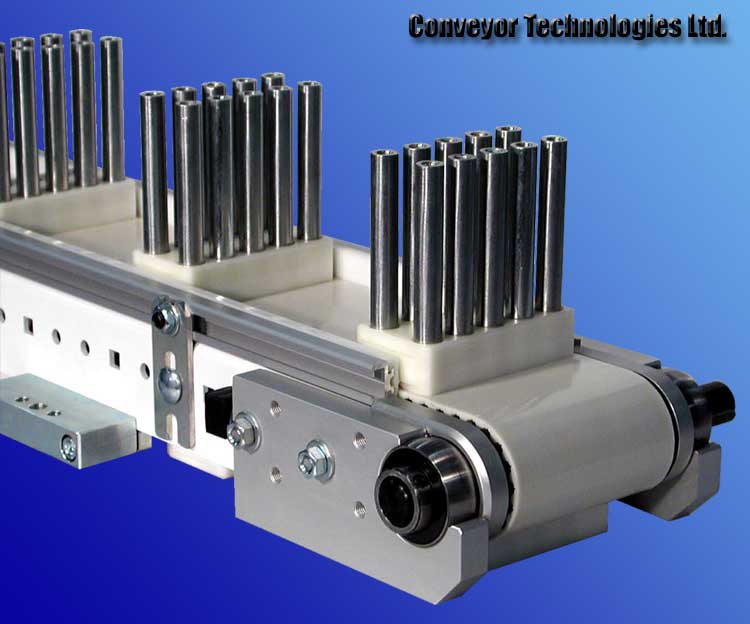

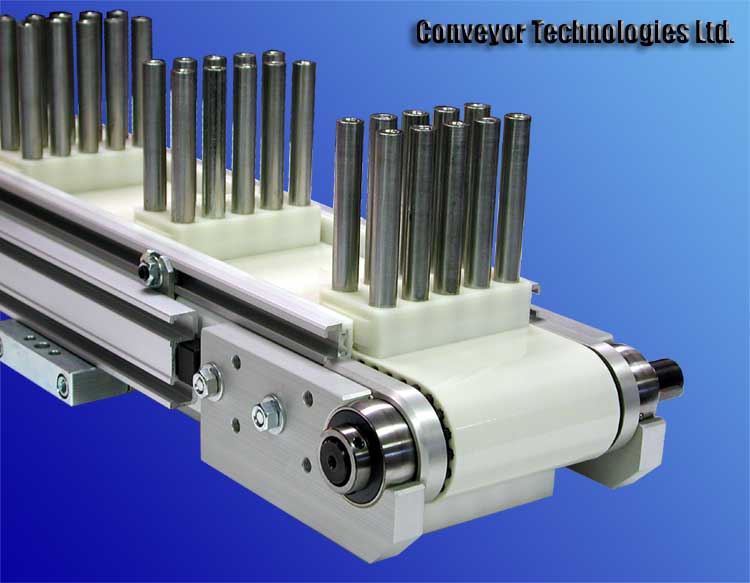

Guided Part Holders

FlexLoc™ features guided part holders that enhance precision and durability. The guided system ensures stable positioning throughout the entire length of the conveyor, improving part accuracy during indexing and assembly processes.

Specifications

Features

Benefits

Options

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
  • Conveyor Length Options: 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm), Custom lengths available upon request
  • Load Capacity: Up to 100 lbs (45.4 kg)
  • Drive Type: AC or DC motor options available
  • Frame Material: Powder-coated aluminum or stainless steel
  • Operating Environment: Suitable for cleanroom, washdown, and precision assembly environments
  • Warranty: 2-year unlimited hours, including bearings
  • Precision part holder system for enhanced accuracy and stability
  • Tool-free holder removal and changeover for efficient maintenance
  • High-precision part positioning with guided travel along the conveyor
  • Compatible with a range of part sizes, weights, and configurations
  • FlexLoc™ holders significantly reduce joint stress, improving longevity
  • High Accuracy: ±.01" part positioning accuracy for improved quality control.
  • Durability: Rugged construction ensures long-lasting performance in demanding environments.
  • Versatility: Flexible holder configurations for a variety of part types and sizes.
  • Quick Changeovers: Minimizes downtime with rapid, tool-free holder changes.
  • Cleanroom-Ready: Suitable for applications requiring minimal contamination.
  • Custom Lengths & Widths: Available for specialized configurations.
  • Magnetic Part Holders: Optional magnetic holders for easy part positioning.
  • Side Rails: Additional side rails for part stability during movement.
  • Sensors and Automation: Compatible with various sensors for automation and control.
  • Washdown Ready: Stainless steel options for washdown environments.

    • Key Features

    • Preloaded Holder System: Provides improved accuracy and durability

    • Tool-Free Part Holder Change: Holders and sub-plates can be removed without tools

    • Precision Guided Holders: Ensures accurate and stable positioning

    • Modular Sub-Plates: Allows easy integration of user-specific part holders

    • Suitable for Cleanroom Applications: Minimal contamination and durable design

    Documentation

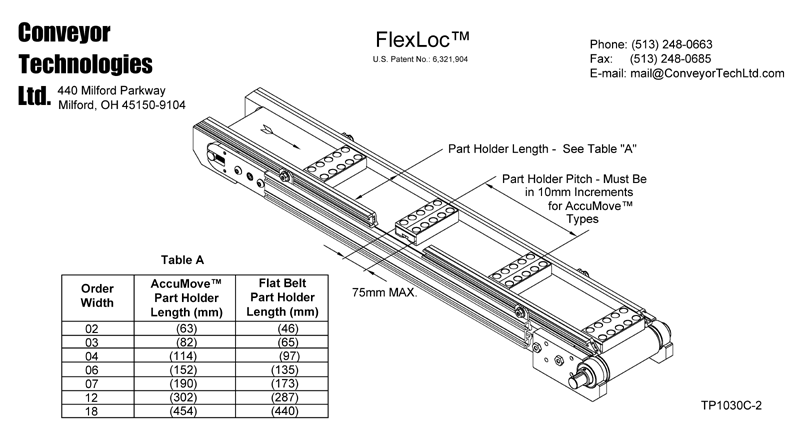

    FlexLoc Specifications

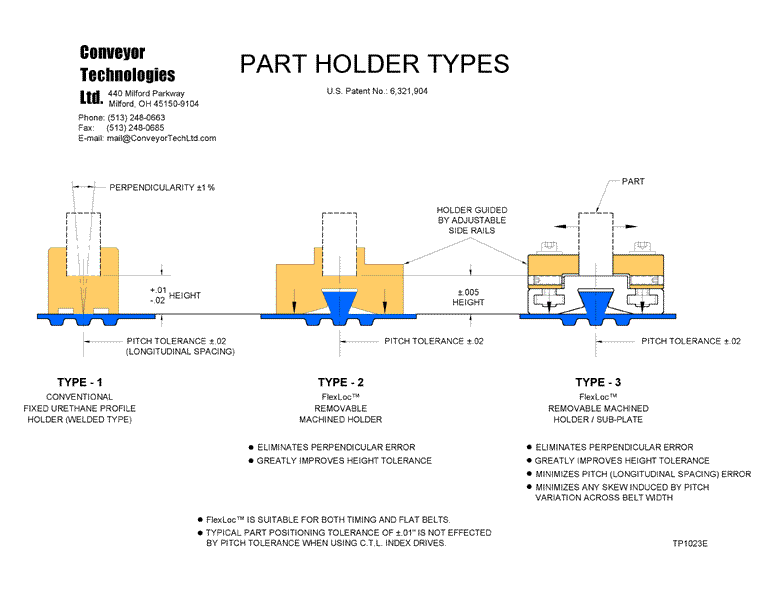

    FlexLoc Part Holders
    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm), Custom lengths available upon request
    Load Capacity Up to 100 lbs (45.4 kg)
    Drive Type AC or DC motor options available
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Suitable for cleanroom, washdown, and precision assembly environments
    Warranty 2-year unlimited hours, including bearings
