Introduction

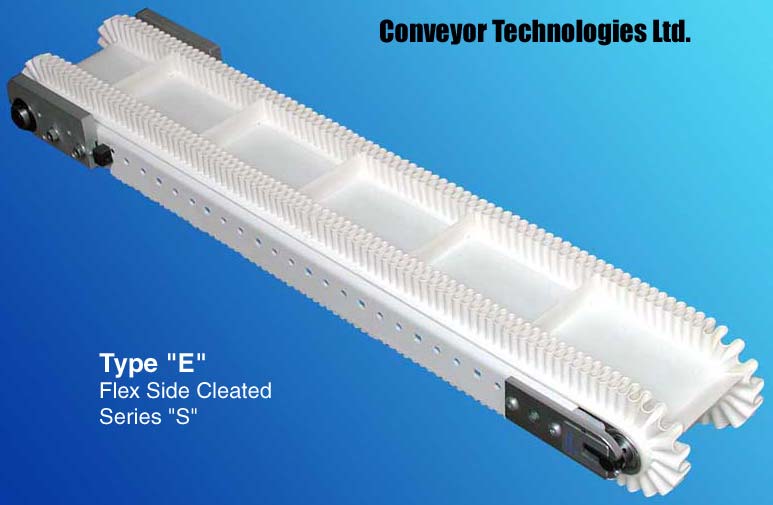

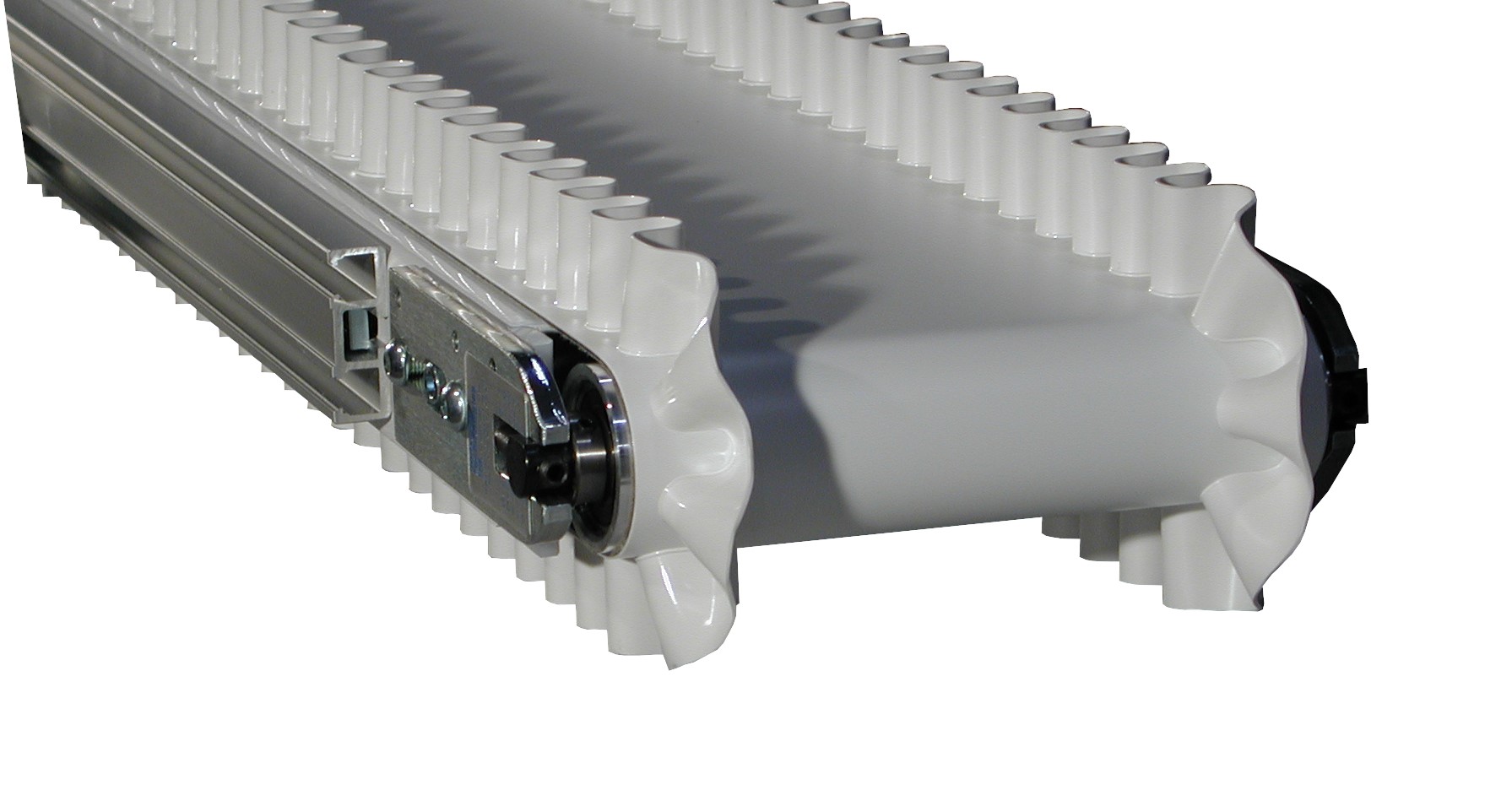

The Flex-Side Cleated Conveyor is designed for handling small products where product contact with fixed sides is undesirable. Ideal for delicate part segregation, counting, timing, and incline material flow, the Flex-Side system allows products to be transported efficiently without damage or contamination.

Flexible, Adjustable Cleats

The Flex-Side Cleated Conveyor features adjustable cleats, allowing precise product control without rigid side rails. This is especially beneficial for handling fragile or small items that require specific positioning during transport.

Specifications

Features

Benefits

Options

  • Belt Width Options:  4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10" (250mm), 12" (305mm), 18" (457mm), 24" (610mm)
  • Conveyor Length Options: 2' (610mm) - 16' (4877mm) (Custom lengths available upon request)
  • Cleat Heights: 0.79" (20mm), 1.18" (30mm), 1.57" (40mm) (Other sizes available upon request)
  • Load Capacity: Up to 300 lbs (136 kg)
  • Belt Material: Urethane, Rubber
  • Drive Type: AC or DC motor, with reversible drive options
  • Frame Material: Powder-coated Steel, Aluminum or stainless steel for washdown applications
  • Operating Environment: Suitable for cleanroom, washdown, and pharmaceutical environments
  • Warranty: 10-year unlimited hours, 5-years including bearings
    • Incline Material Flow: Designed for transporting products smoothly on inclined surfaces.
    • Product Segregation and Timing: Ideal for separating products and ensuring accurate timing in production lines.
    • Adjustable Cleat Heights: Standard cleat heights are 0.79" (20mm), 1.18" (30mm), and 1.57" (40mm). Other sizes are available upon request.
    • Multiple Series Options: Available in Series S and other configurations for different belt widths and cleat heights.
    • Belt Material Options: Urethane or rubber cleated belts that provide chemical resistance and minimize contamination.
  • Versatile Handling: Designed for small, fragile products where side contact should be avoided.
  • Efficient Transport: Maintains product positioning on inclined surfaces, improving material flow efficiency.
  • Durable & Low Maintenance: Built with high-quality materials, requiring minimal maintenance over time.
  • Customization: Cleat heights and belt widths are customizable to meet specific operational needs.
  • Custom Cleat Heights: Standard heights include 0.79" (20mm), 1.18" (30mm), and 1.57" (40mm). Other heights are available upon request.
  • Side Rails: Optional UHMW or stainless steel rails for additional support.
  • Drive Type: AC or DC motor, with reversible drive options.
  • Frame Material: Powder-coated aluminum or stainless steel for washdown applications.

    • Key Features

    • Customizable cleat heights and configurations

    • Efficient product segregation for handling delicate items

    • Designed for incline or horizontal product flow

    • Flexible material options for different environments

    • Minimal product contact to prevent contamination

    Documentation

    No items found.
    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10" (250mm), 12" (305mm), 18" (457mm), 24" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm) (Custom lengths available upon request)
    Cleat Heights 0.79" (20mm), 1.18" (30mm), 1.57" (40mm)
    Load Capacity Up to 150 lbs (68 kg)
    Belt Material Urethane, Rubber
    Operating Environment Cleanroom, Washdown, Pharmaceutical
    Warranty 2-year unlimited hours, including bearings
