Introduction

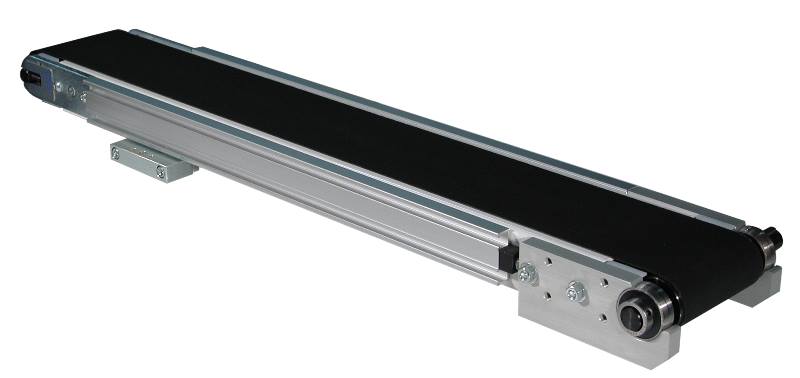

The End Drive Conveyor is designed to provide efficient and reliable material handling solutions in compact spaces. Ideal for industries such as manufacturing, packaging, and automation, this low-profile conveyor offers seamless integration into existing systems with minimal space requirements.

Whether you’re moving small parts in assembly lines or handling larger items in packaging operations, the End Drive Conveyor ensures smooth, consistent performance, making it the go-to solution for production facilities aiming to optimize their workflow and reduce operational downtime.

End Drive System

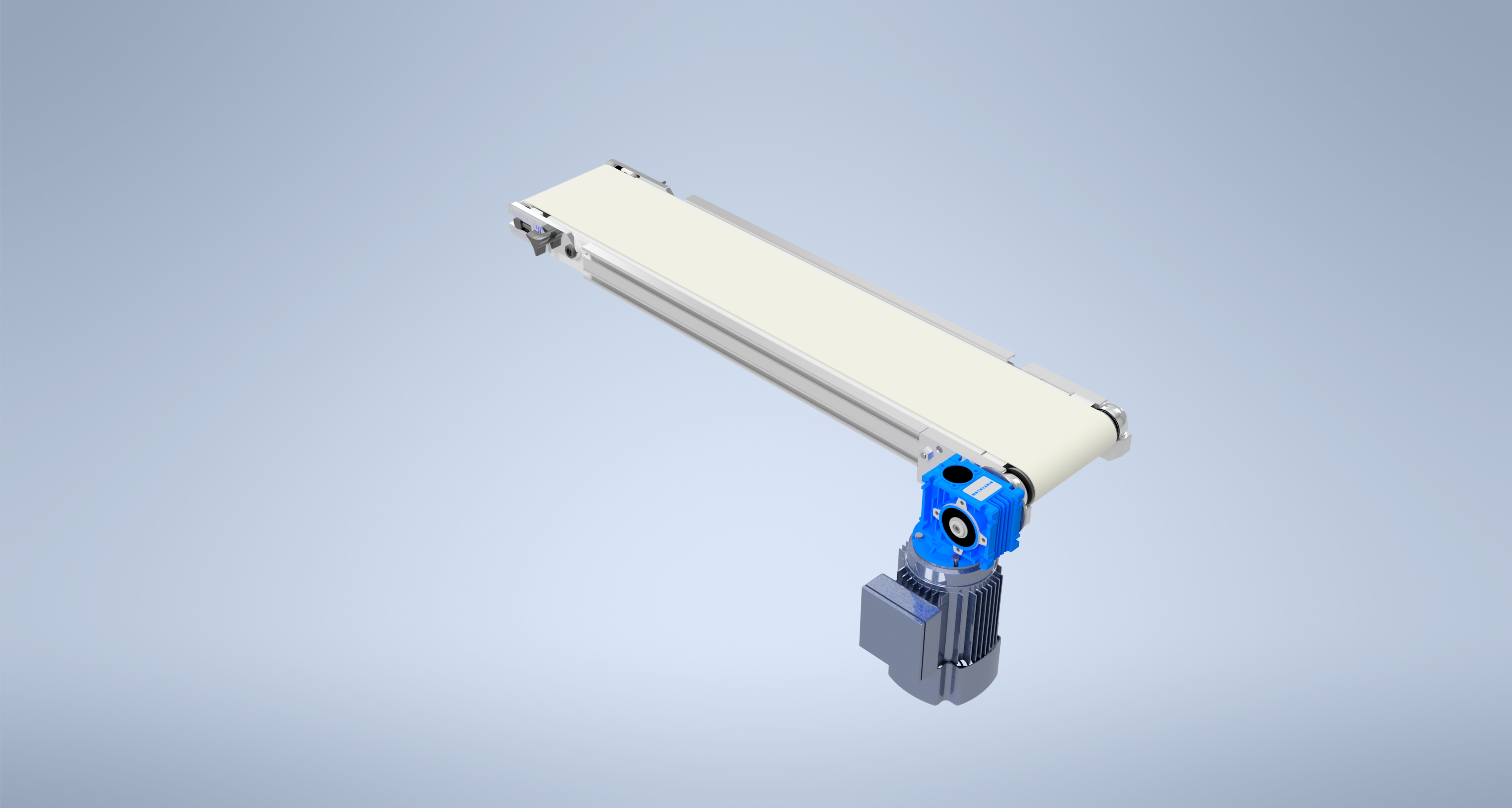

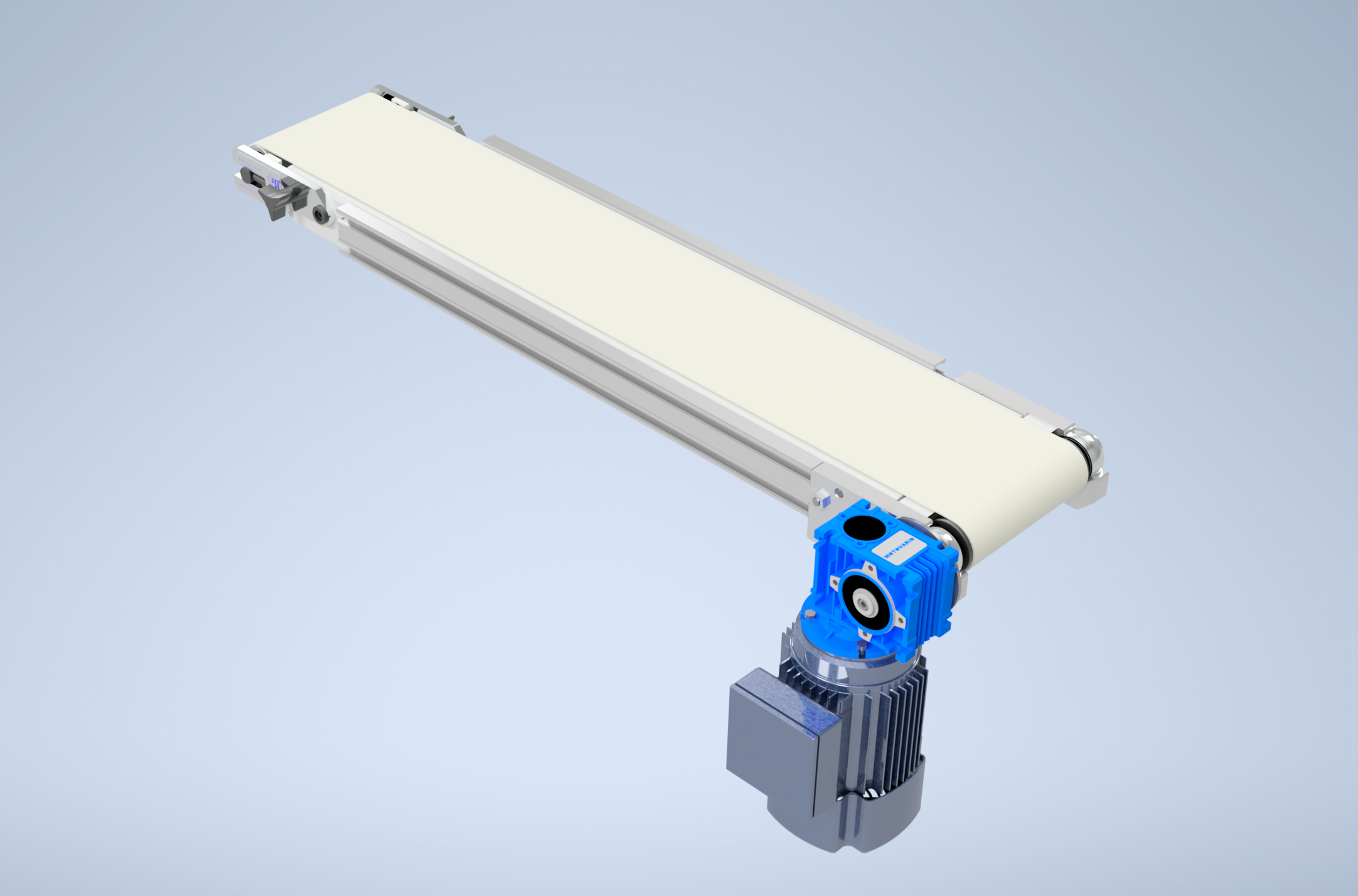

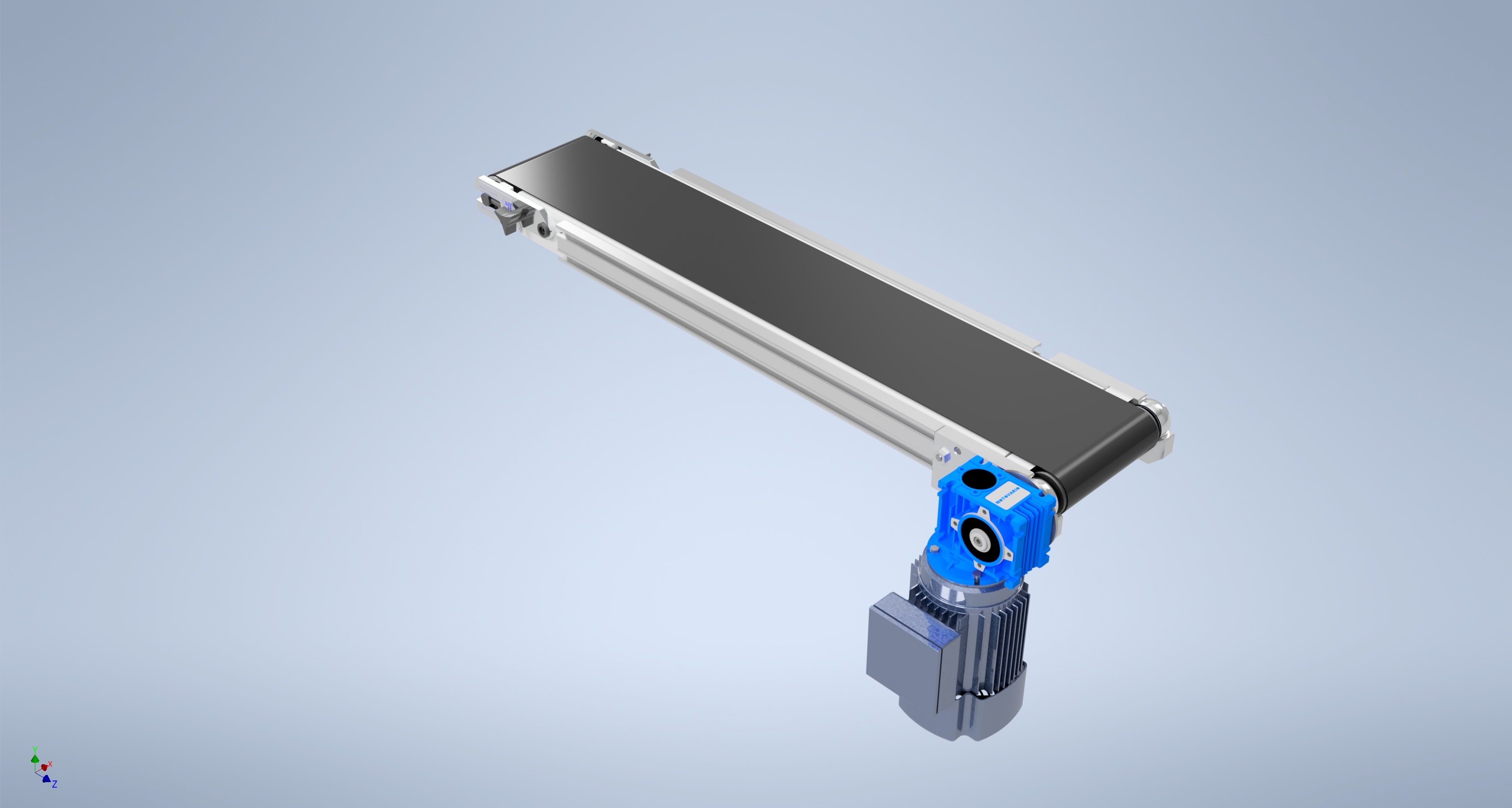

Positioned at one end of the conveyor, the End Drive System maximizes usable belt space in compact environments. Its efficient design reduces maintenance, enhances power transmission, and integrates seamlessly into automation systems.

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
  • Conveyor Length Options: 14" (357mm) up to 20’ (6096mm) (Custom lengths available upon request)
  • Load Capacity: Up to 400 lbs (181.4 kg)
  • Belt Speed: Speed range of 1 to 500 ft/min
  • Drive Type: AC or DC motor, with reversible drive options
  • Frame Material: Powder-coated steel, aluminum or stainless steel for washdown applications
  • Operating Environment: Suitable for cleanroom, washdown, and high-temperature environments
  • Warranty: 10-year unlimited hours, 5-Years including bearings
  • Low Profile Design: At only a few inches high, the End Drive Conveyor fits into tight spaces, making it ideal for areas where space is at a premium.
  • Modular Components: Easy to customize with modular add-ons such as side rails, part holders, or sensors.
  • Sealed-for-Life Bearings: Maintenance-free operation reduces downtime and ensures reliability.
  • Reversible Drive: Allows for bi-directional operation, giving flexibility in material handling processes.
  • Quick Belt Replacement: Tool-free belt changes can be completed in minutes, minimizing production interruptions.
  • Space-Efficient: The compact end-drive design maximizes space on the factory floor while maintaining high performance.
  • Easy Integration: Designed to integrate smoothly into automation systems, whether in manufacturing or packaging lines.
  • Low Maintenance: Sealed-for-life components ensure minimal maintenance and lower operating costs over time.
  • Energy Efficient: Optimized motor design reduces energy consumption while maintaining high output.
  • Durability: Constructed from high-quality materials like stainless steel and powder-coated aluminum, the conveyor can withstand harsh industrial environments.
  • Custom Lengths and Widths: Available upon request to fit unique space and operational requirements.
  • Side Rails: Optional side guides for part stability during transport.
  • Part Holders: Customizable part holders for precise positioning and handling of small parts.
  • Sensors and Automation: Add-ons such as sensors for part detection or automated controls for synchronized movement.
  • Washdown Ready: Stainless steel construction for environments that require frequent cleaning or exposure to moisture.
  • Key Features

    • Quick & Easy Belt Switch System

    • Compact, space-saving design

    • Low maintenance, sealed-for-life components

    • Customizable belt widths and lengths

    • Energy-efficient drive systems

    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm)
    Load Capacity Up to 200 lbs (90.7 kg)
    Belt Speed Adjustable speed range of 100 to 500 ft/min
    Drive Type AC or DC motor, with reversible drive options
    Frame Material Powder-coated aluminum or stainless steel for washdown applications
    Operating Environment Suitable for cleanroom, washdown, and high-temperature environments
    Warranty 2-year unlimited hours, including bearings
    Custom Lengths & Widths Custom lengths and widths available upon request
    Quick Belt Replacement Tool-free belt changes in minutes, minimizing downtime
