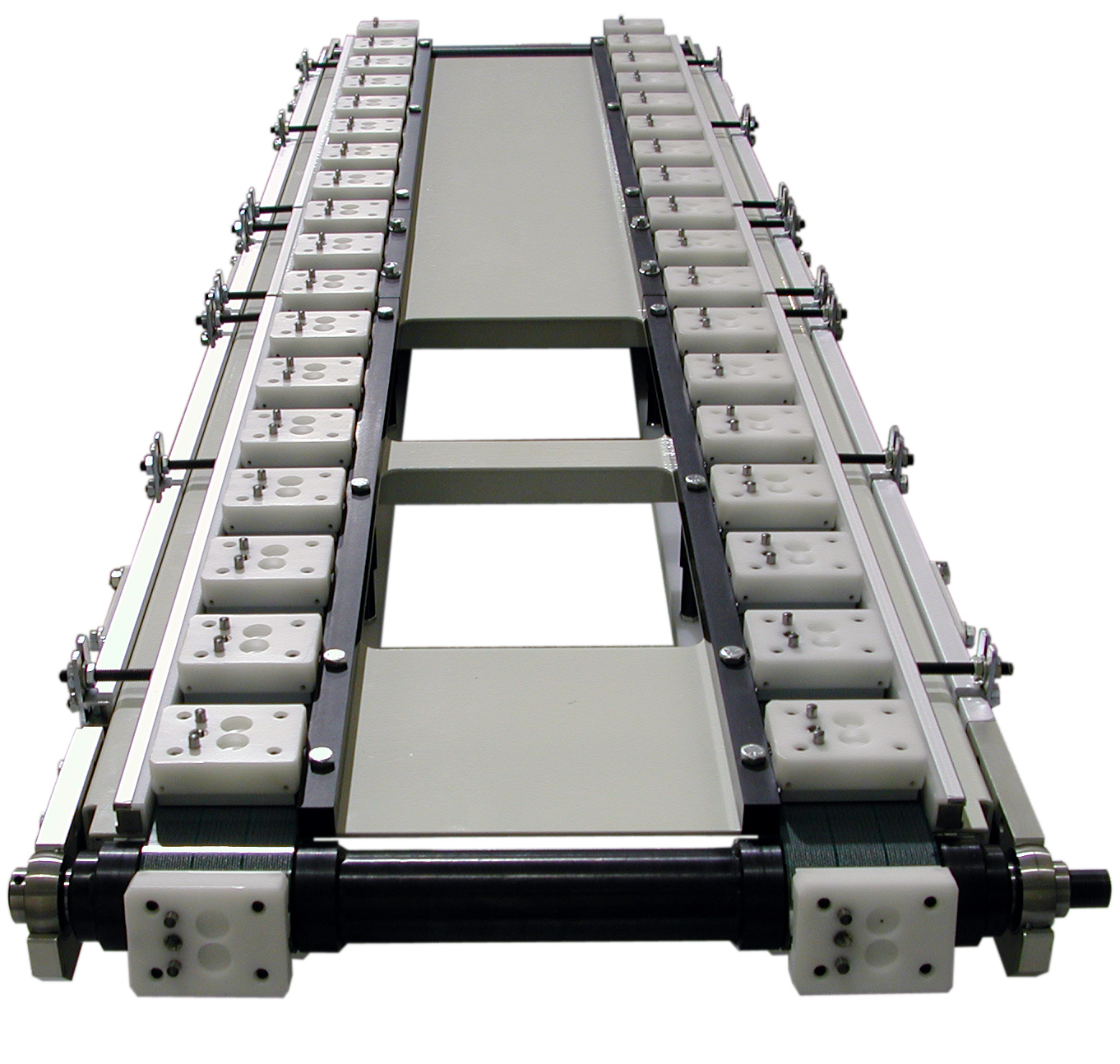

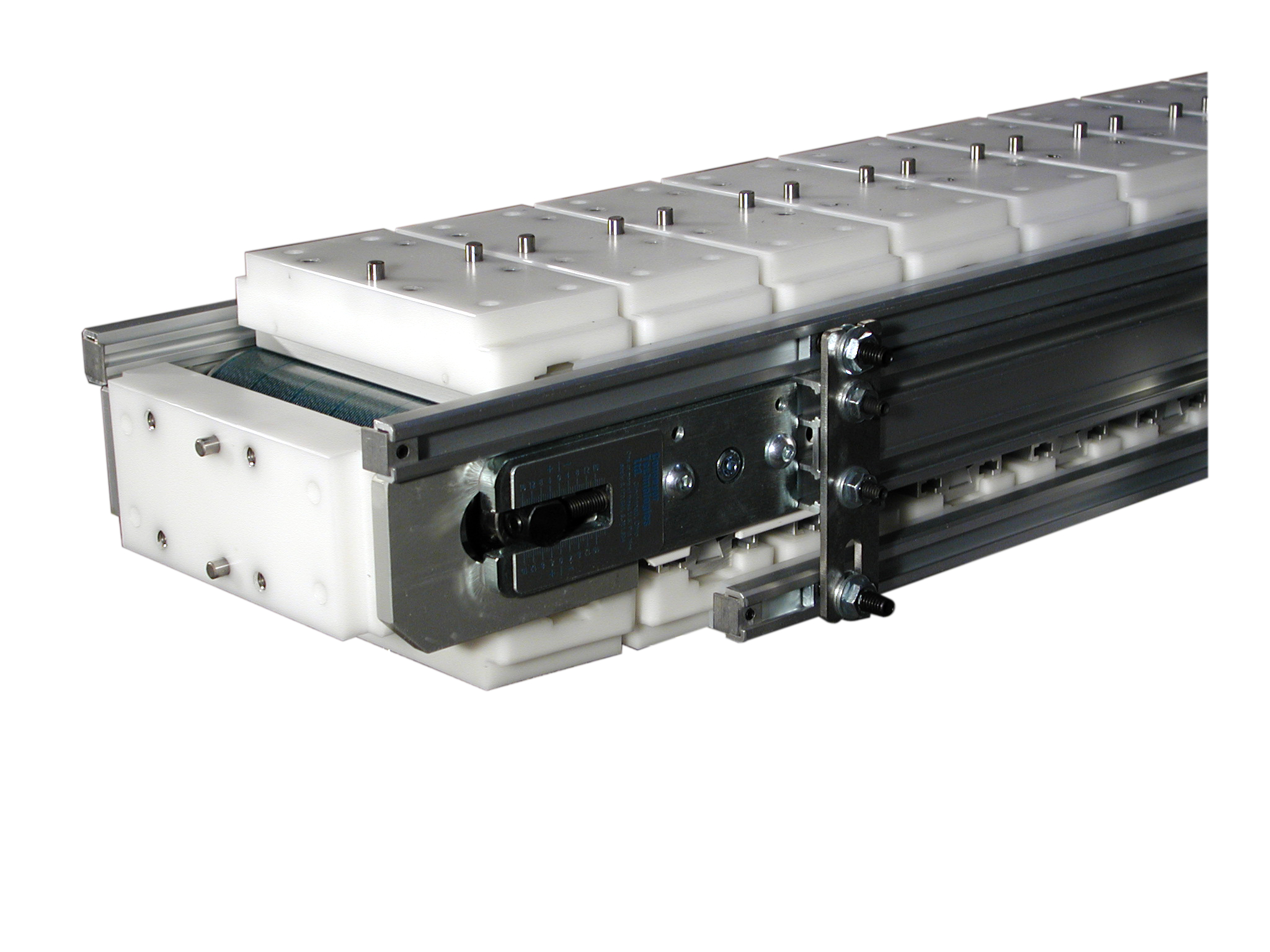

The Dual Belt Indexing Conveyor is designed for applications requiring precision part placement and movement. Its dual-timing belt system supports holder widths up to 24", making it ideal for automated assembly, inspection, and packaging lines. This conveyor ensures consistent, repeatable indexing, allowing holders to be precisely aligned and guided throughout the entire working length.

Whether you need separated holders or spanning across both belts, the system provides versatility and accuracy for a wide range of industrial tasks.

Precision Indexing System

The Dual Belt Indexing Conveyor's precision indexing system guarantees accuracy and repeatability for automated processes. The dual belts and master plate calibration ensure that parts remain securely in place throughout the indexing motion.

Specifications

Features

Benefits

Options

  • Holder Width: Supports holder widths up to 24" (610mm).
  • Conveyor Length Options: Available in various lengths, with custom lengths available upon request.
  • Load Capacity: Up to 100 lbs (45 kg) per belt.
  • Belt Type: Dual timing belts for precision indexing.
  • Frame Material: Powder-coated aluminum or stainless steel for specialized environments.
  • Operating Environment: Suitable for automation, assembly, inspection, and high-precision applications.
  • Warranty: 2-year unlimited hours warranty, including bearings.
  • Holders Flexibility: Holders can either be separated or span across both belts, providing flexibility for different part sizes.
  • Master Plate Calibration: The aluminum sub-plates and master plates are calibrated with the belts to ensure improved accuracy in part placement.
  • Single-Piece Machined Pulleys: Both drive and tail pulleys are machined from a single piece for enhanced durability and precision.
  • Full-Length Holder Guidance: Holders are guided along the entire working length, ensuring consistent placement throughout the conveyor.
  • Vertical Oscillation Prevention: Holders are supported on the lower return to eliminate vertical oscillation during the movement cycle.
  • Accurate Indexing: Dual-timing belt system ensures precision and consistency in part movement.
  • Customizable: Easily adjustable for various holder widths and sizes.
  • Durability: Machined pulleys and robust construction ensure long-lasting performance.
  • Reduced Maintenance: Sealed components minimize downtime and maintenance requirements.
  • Ideal for Automation: Perfect for assembly lines, inspection systems, and packaging applications.
    • Custom Holder Designs: Customizable holder sizes and designs for specific applications.
    • Advanced Automation: Optional sensors and automation add-ons for part detection and synchronization.
    • Washdown Ready: Stainless steel construction for environments requiring frequent cleaning.
    • Modular Accessories: Available with modular add-ons like side rails and part holders.

    Key Features

    • Versatile holder options for separated or spanning belts

    • Master plate calibration for enhanced part placement accuracy

    • Single-piece machined drive and tail pulleys for improved precision

    • Full-length holder guidance to ensure consistency

    • Prevention of vertical oscillation for stable, accurate indexing

    Documentation

    No items found.
    Specification Details
    Holder Width Up to 24" (610mm)
    Conveyor Length Options Custom lengths available upon request
    Load Capacity Up to 100 lbs (45 kg) per belt
    Belt Type Dual Timing Belt
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Automation, Assembly, Inspection, High-Precision
    Warranty 2-year unlimited hours, including bearings
