Introduction

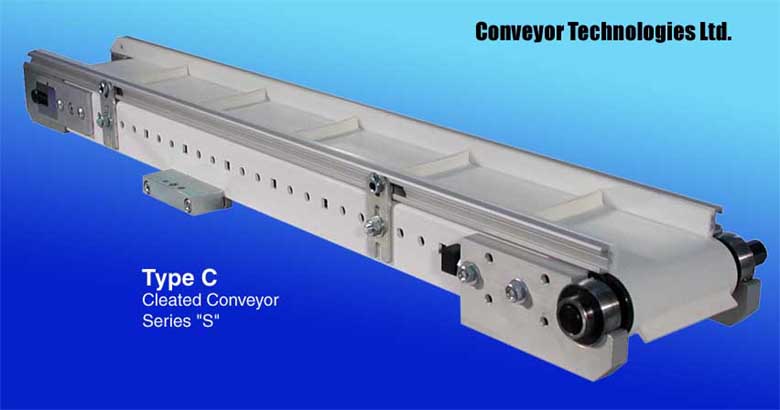

The Cleated Conveyor (Type "C") is designed to handle incline material flow, spacing, and part segregation effectively. Available in both standard and automation series (Series "S" and "T"), this low-profile conveyor offers enhanced flexibility for diverse applications, ranging from counting and timing to segregating products during transport. Standard cleat heights and customizable options allow for tailored solutions to meet the specific needs of your production line.

Efficient Material Flow

The cleated design ensures precise spacing and movement, allowing for smooth material flow on inclines or in timed applications.

Specifications

Features

Benefits

Options

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
  • Conveyor Length Options: 14" (356mm) - up to 16' (4877mm) in 1" increments. other Optional lengths available upon request
  • Cleat Heights: .79" (20mm), 1.18" (30mm), 1.57" (40mm), 2.0" (51mm), 3" (76mm) other sizes available (consult factory)
  • Load Capacity: Up to 400 lbs (181.44 kg)

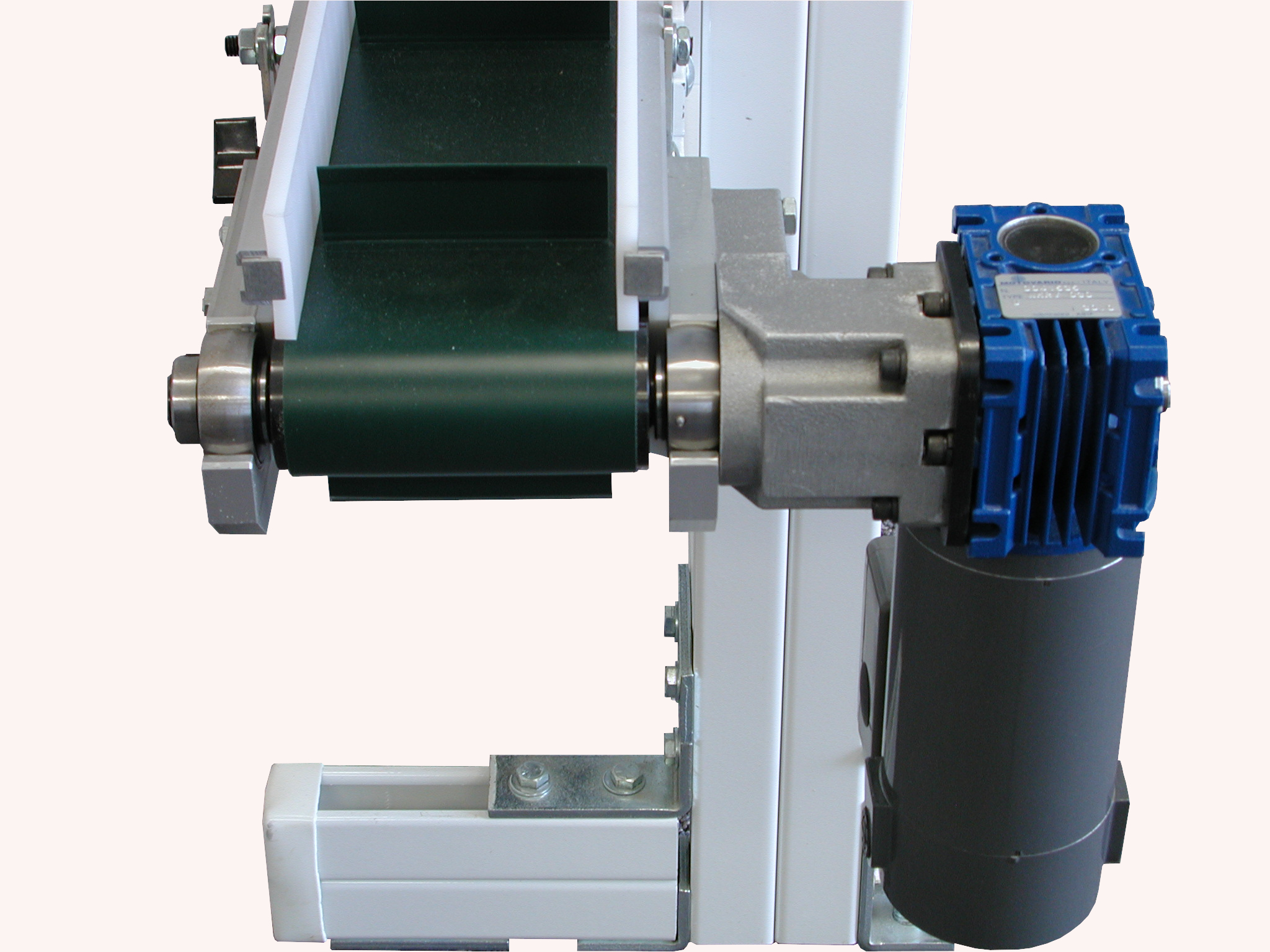

  • Drive Type: AC or DC motor, with reversible drive options
  • Operating Environment: Suitable for cleanroom, washdown, and industrial environments
  • Frame Material: Powder-coated steel, aluminum or stainless steel
  • Warranty: 5-year unlimited hours, including bearings
  • Incline Material Flow: Ideal for moving materials upwards efficiently and safely.
  • Spacing & Segregation: Offers precise control over product placement, spacing, and segregation on the conveyor belt.

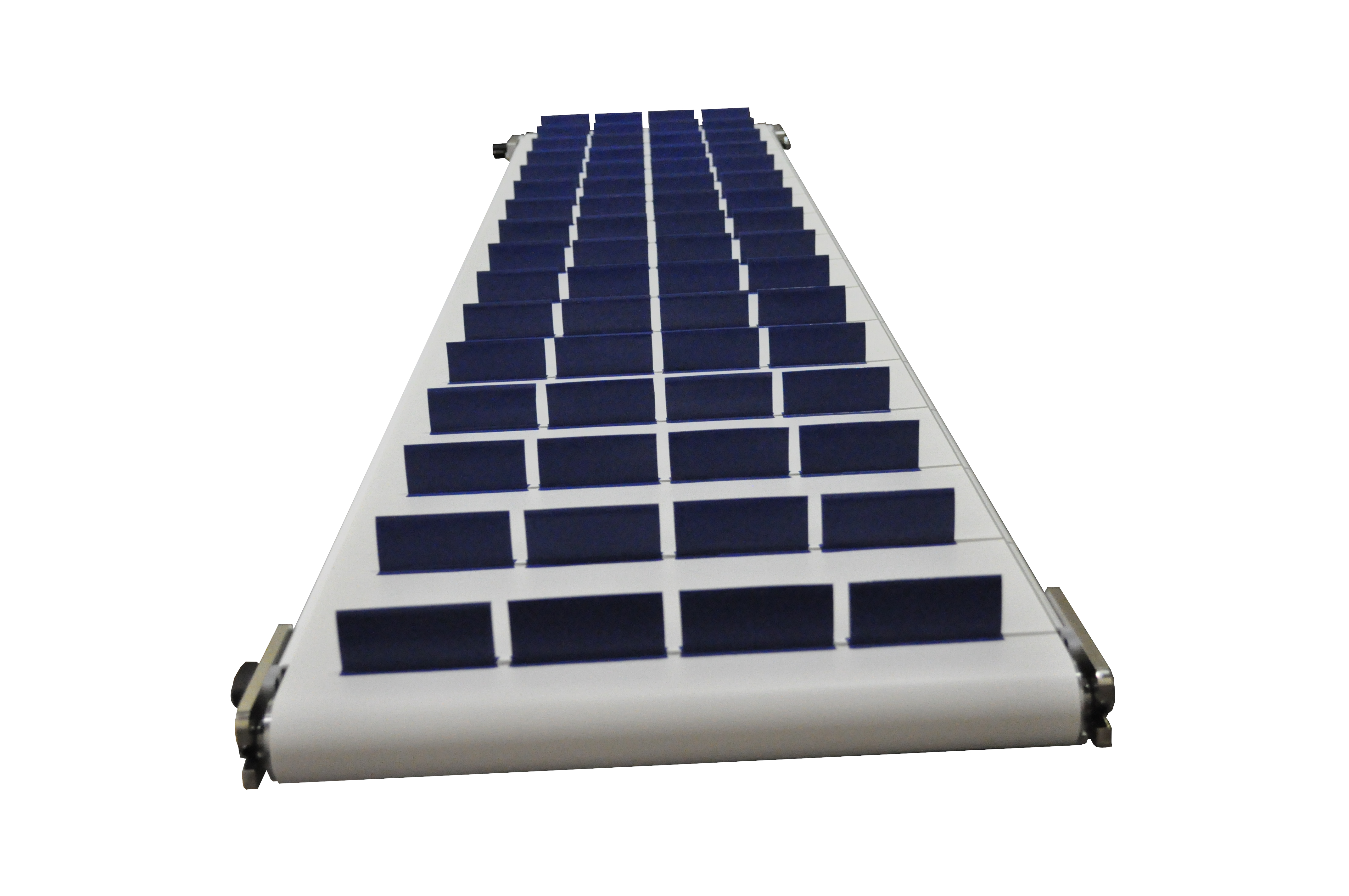

  • Customizable Cleats: Available in various heights to fit different material handling requirements.
  • Reversible Drive: Allows for bi-directional material flow, enhancing production flexibility.
  • Low Maintenance: Sealed-for-life components minimize the need for regular maintenance.
  • Improved Cleat width: Streamlined design only reduces usable cleat width by .688" from the nominal conveyor width. This allows us to provide a narrower "lower-cost" option on narrower widths than most of our competitors.
  • Flexibility in Applications: The conveyor’s ability to handle varying cleat heights and belt widths ensures it meets the needs of diverse industries.
  • Low Maintenance: Sealed-for-life components mean minimal upkeep is required, saving time and costs.
  • Durable Design: Built from top-quality materials, this conveyor is designed for long-term use in industrial and high-demand environments.
  • Custom Cleat Heights: Cleat heights can be customized to meet specific application needs.
  • Drive Options: AC or DC motors with reversible drive available.
  • Stainless Steel Frame: Available for harsh or washdown environments.

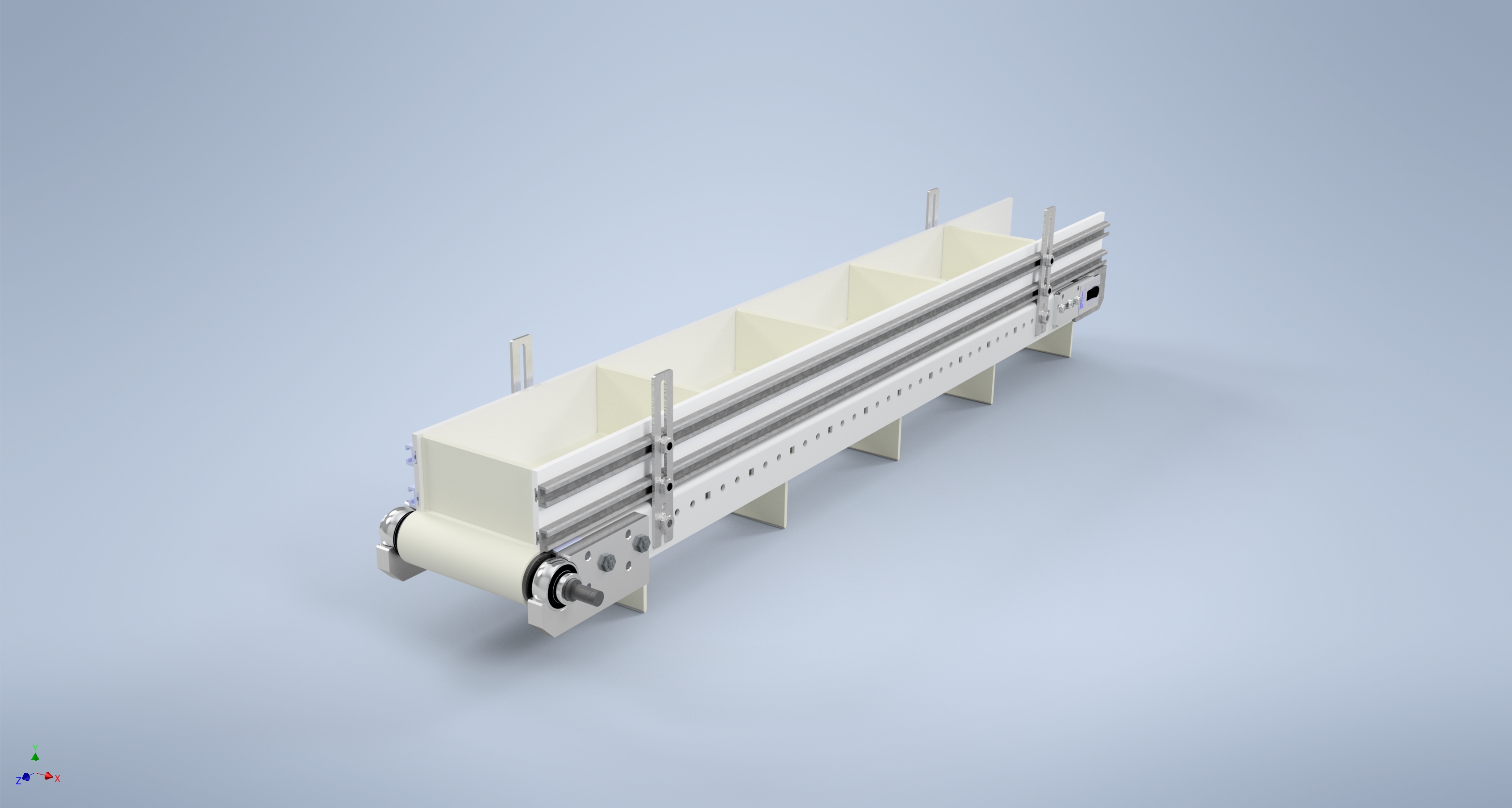

  • Side Guides: Optional side guides to assist in part stability and control.
  • Custom Belt Widths: Belt widths can be customized beyond standard offerings for unique applications.

    • Key Features

    • Incline Material Flow: Designed for smooth material flow on inclines

    • Precise Product Spacing: Ensures consistent spacing for counting and timing

    • Customizable Cleat Heights: Available in standard and custom heights

    • Reversible Drive: Allows bi-directional material flow for added flexibility

    • Durable Construction: Built to last with low-maintenance components

    Documentation

    No items found.
    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10.0" (250mm), 12.0" (305mm), 18.0" (457mm), 24.0" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm)
    Cleat Heights .79" (20mm), 1.18" (30mm), 1.57" (40mm), custom sizes available
    Load Capacity Up to 100 lbs (45.36 kg)
    Drive Type AC or DC motor, with reversible drive options
    Operating Environment Suitable for cleanroom, washdown, and industrial environments
    Frame Material Powder-coated aluminum or stainless steel
    Warranty 2-year unlimited hours, including bearings
