Introduction

The Center Drive Conveyor is engineered for applications requiring longer conveyor lengths and minimal space requirements at both the infeed and discharge ends. With its mid-positioned drive system, it allows for optimal product overhang while maintaining a compact and efficient design. The conveyor is ideal for environments where space is limited and production efficiency is paramount, ensuring smooth material handling across various industries.

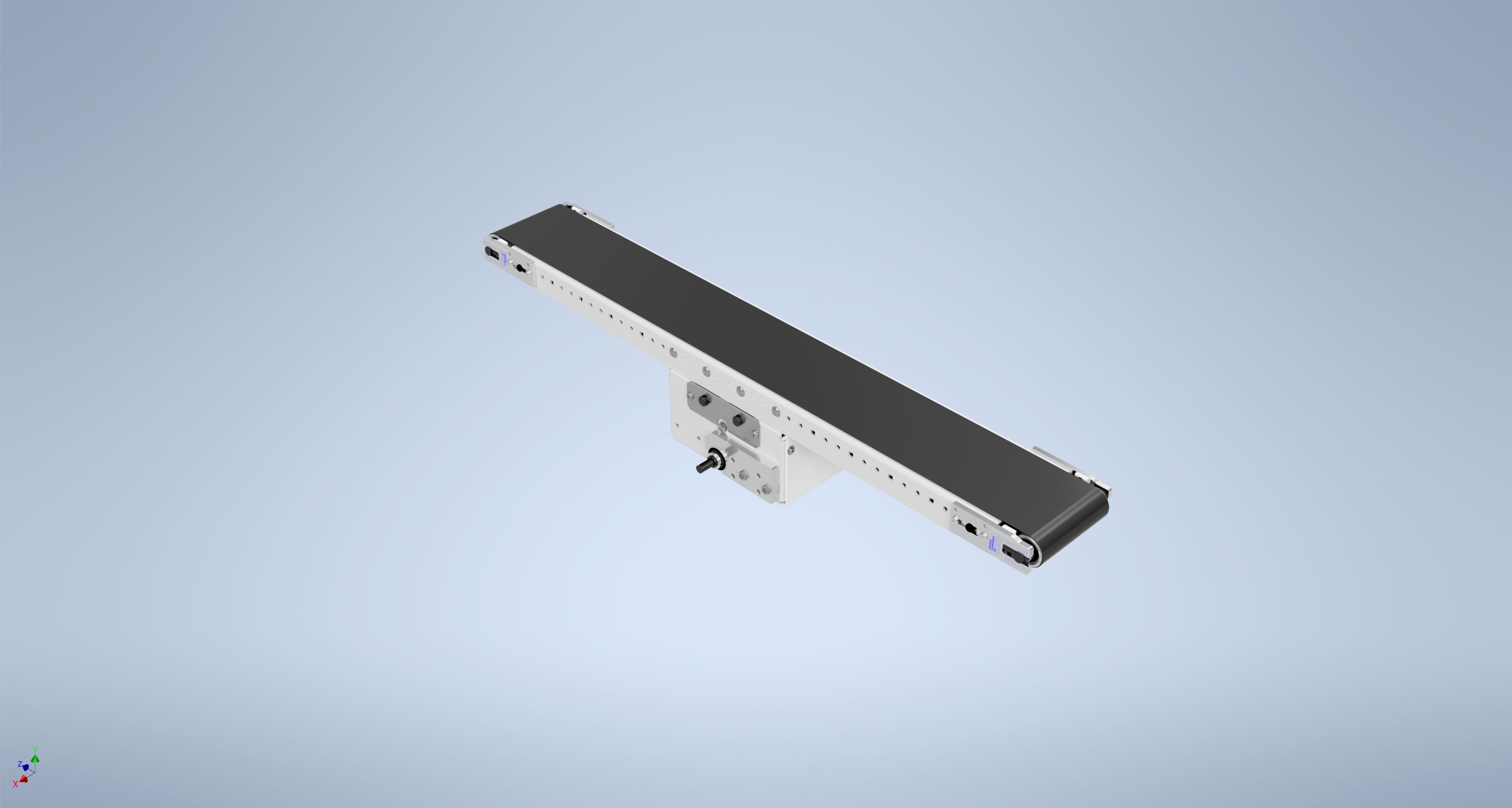

Repositionable Drive System

The repositionable drive system in the Center Drive Conveyor allows for seamless adaptation to varying space constraints and operational needs. This flexibility is particularly useful for long conveyor systems where end space is limited, making it a highly versatile solution for many production environments.

Specifications

Features

Benefits

Options

  • Belt Width Options: 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10" (250mm), 12" (305mm), 18" (457mm), 24" (610mm)
  • Conveyor Length Options: 2' (610mm) up to 40' (12192mm) in 1" increments.
  • Load Capacity: Up to 400 lbs (181.4 kg)
  • Belt Speed: Speed range of 1 to 500 ft/min
  • Drive Type: Repositionable center drive system, reversible, with both AC and DC motor options
  • Frame Material: Single-piece aluminum frame (10' and under), stainless steel frame available for washdown applications
  • Operating Environment: Suitable for cleanroom, pharmaceutical, and high-temperature environments
  • Warranty: 5-year unlimited hours, including bearings
  • Longer Conveyor Applications: Ideal for applications that require longer conveyor lengths while minimizing space at infeed and discharge.
  • Repositionable Center Drive: The drive system can be repositioned in 3" increments for greater flexibility in space-limited environments.
  • Reversible Operation: Allows for bi-directional material flow, enhancing efficiency in various production setups.
  • Single-Piece Frame: For conveyors 10' and under, the frame is built in a single piece for added strength and simplicity.
  • Quick Belt Replacement: Designed for quick belt changes to minimize downtime during maintenance.
  • Space Efficiency: Compact design that saves space at both the infeed and discharge ends, making it ideal for tight production lines.
  • Increased Flexibility: Repositionable drive system ensures easy adaptation to new layouts or operational needs.
  • Low Maintenance: Sealed-for-life components and a simple belt replacement process ensure minimal maintenance requirements.
  • Energy Efficiency: Optimized drive design reduces energy consumption while maintaining performance.
  • Durability: Constructed from high-quality materials, the conveyor is designed to withstand harsh environments and prolonged use.
  • Custom Lengths: Available upon request for specific space requirements.
  • Side Rails: Optional side guides to keep products stable during transport.
  • Part Holders: Customizable part holders for precise product placement.
  • Washdown Ready: Stainless steel frame option for environments requiring frequent cleaning.

    • Key Features

    • Repositionable drive system for flexible layouts

    • Compact design saves space at infeed and discharge ends

    • Quick and easy belt replacement system

    • Reversible operation for bi-directional material handling

    • Durable, single-piece frame for lengths up to 10'

    Documentation

    No items found.
    Specification Details
    Belt Width Options 2.5" (63mm), 3.25" (83mm), 4.5" (114mm), 6.0" (152mm), 7.5" (190mm), 10" (250mm), 12" (305mm), 18" (457mm), 24" (610mm)
    Conveyor Length Options 2' (610mm), 3' (914mm), 4' (1219mm), 5' (1524mm), 6' (1829mm), 10' (3048mm), 12.5' (3810mm), 15.5' (4724mm), 19.5' (5944mm), 24' (7315mm), 29' (8839mm)
    Load Capacity Up to 200 lbs (90.7 kg)
    Belt Speed Adjustable speed range of 100 to 500 ft/min
    Drive Type Repositionable center drive system, reversible, with both AC and DC motor options
    Frame Material Single-piece aluminum frame (10' and under), stainless steel frame available for washdown applications
    Operating Environment Suitable for cleanroom, pharmaceutical, and high-temperature environments
    Warranty 2-year unlimited hours, including bearings
