Introduction

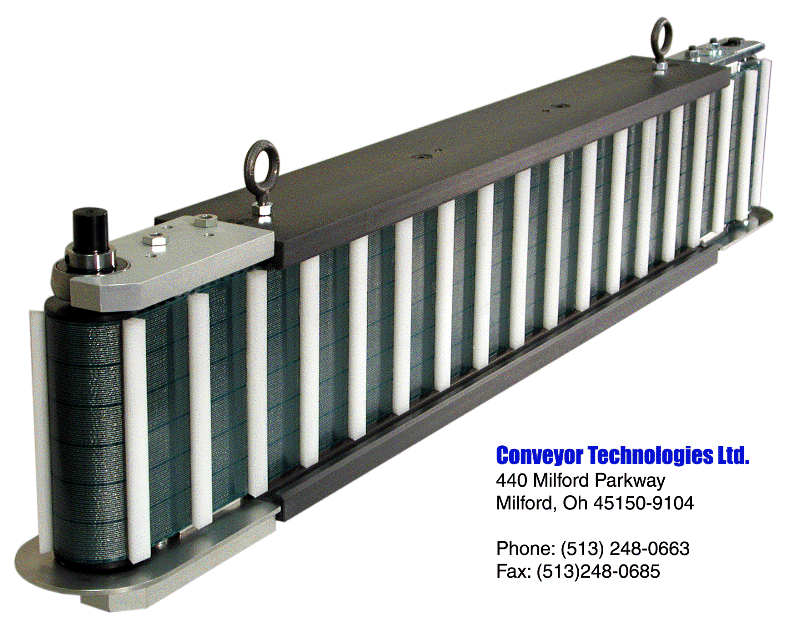

The Carousel Indexing Conveyor is engineered for precision part handling, providing a compact, space-efficient solution while nearly doubling the number of effective holders without increasing conveyor length or floor space. Ideal for applications that require parts to be carried in a vertical position, this conveyor optimizes production efficiency in industries such as packaging, manufacturing, and automation. With a patented holder retention system, the Carousel Indexing Conveyor ensures the highest accuracy, strength, and durability with rapid changeovers to maximize uptime.

Patented Holder Retention System

Engineered for high accuracy and durability, the patented retention system allows rapid holder changeovers while maintaining the precision required for vertical part handling.

Specifications

Features

Benefits

Options

  • Belt Width Options: 105mm (4.13")
  • Conveyor Length Options: 41", 70", 99"
  • Part Capacity: Nearly double the number of holders compared to traditional indexing conveyors
  • Holder Retention System: Patented high-accuracy, durable system with rapid changeovers
  • Operating Environment: Ideal for manufacturing, packaging, and precision automation
  • Frame Material: Powder-coated aluminum or stainless steel
  • Belt Speed: Adjustable speeds up to 100-500 ft/min
  • Load Capacity: Supports up to 50 lbs per holder
  • Warranty: 2-year unlimited hours
  • Compact Design: Maximizes space on the factory floor while enhancing throughput.
  • Vertical Positioning: Keeps parts in an upright position, making it ideal for applications requiring precision indexing in a vertical configuration.
  • High Part Capacity: Nearly doubles the number of effective holders without expanding conveyor length.
  • Anodized Guides: Precision-machined, hard anodized guides on both sides for superior holder stability and longevity.
  • Durable Construction: Built with heavy-duty components to withstand the demands of high-volume production environments.
  • Space-Saving Design: Reduces floor space requirements while increasing part handling capacity.
  • Precision and Reliability: Anodized guides ensure parts remain in position throughout the process.
  • Easy Integration: Seamlessly integrates into existing manufacturing and packaging lines.
  • Fast Changeovers: The patented retention system allows for rapid holder replacement, reducing downtime.
    • Custom Belt Lengths: Available to fit unique space and operational requirements.
    • Holder Customization: Customizable holders available to suit specific product dimensions and requirements.
    • Enhanced Guides: Optional guides for handling larger parts or more delicate components.
    • Automation Add-Ons: Integrate sensors and control systems for synchronized movement and part detection.

    Key Features

    • Vertical Positioning: Ideal for parts that must be carried vertically

    • Maximized Capacity: Nearly doubles holder capacity without increasing floor space

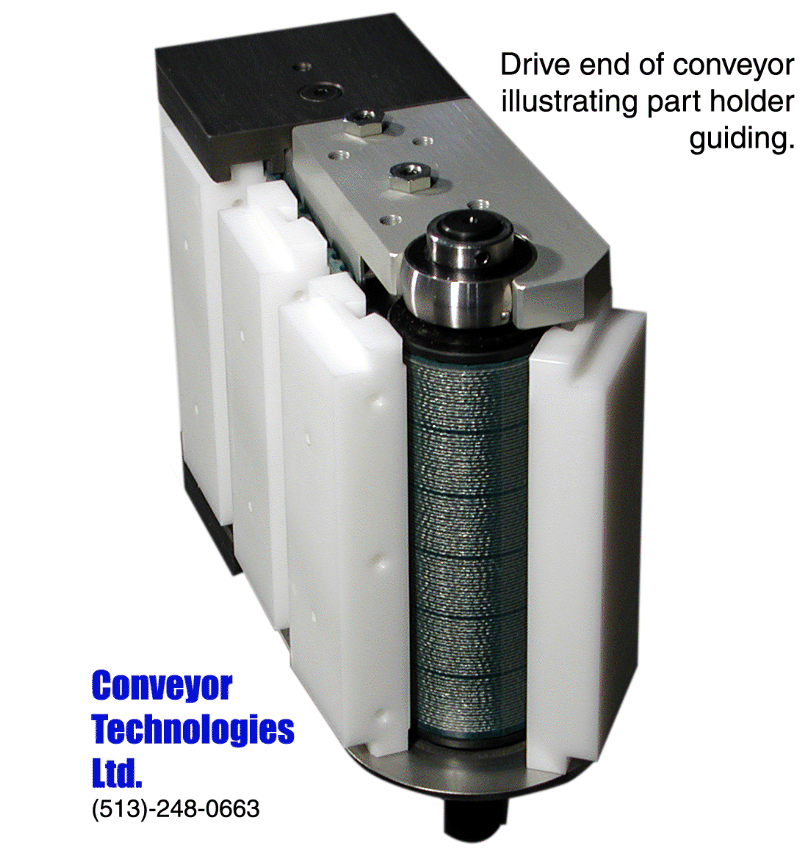

    • Precision Holder Guides: Hard anodized guides on both sides for accurate movement

    • Rapid Changeovers: Patented holder retention system for quick, easy changes

    • Multiple Lengths: Available in 41", 70", and 99" lengths to fit various setups

    Documentation

    No items found.
    Specification Details
    Belt Width 105mm (4.13")
    Conveyor Length Options 41", 70", 99"
    Part Capacity Nearly double the number of holders compared to traditional indexing conveyors
    Operating Environment Manufacturing, packaging, and precision automation
    Patented Holder Retention System High accuracy, strength, and durability with rapid changeovers
