Introduction

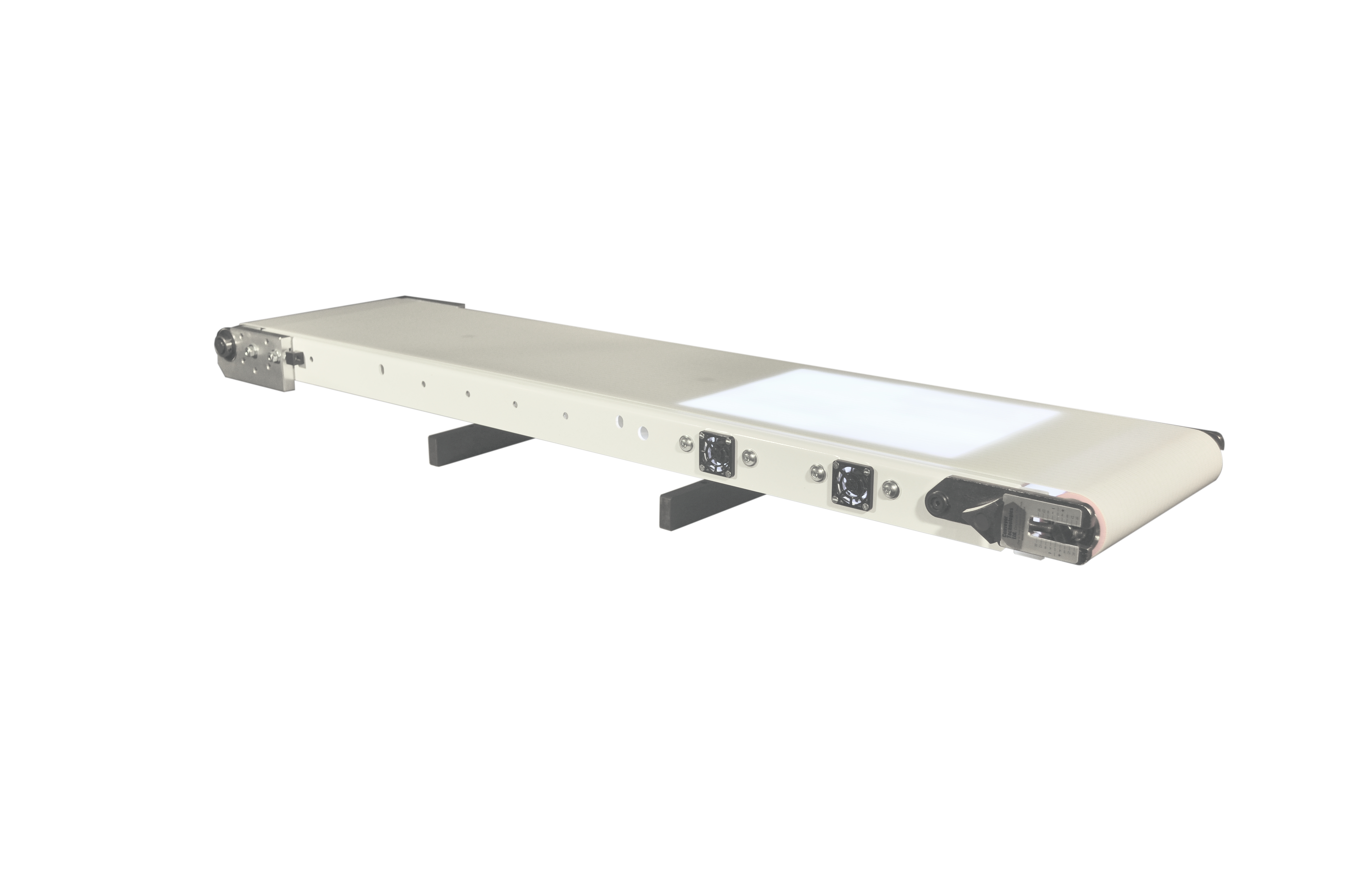

The AccuVision Internal Backlit Conveyor is designed for high-precision visual inspection in both manual and automated systems. Equipped with an integrated backlit system, this conveyor provides superior lighting for inspecting defects and irregularities in small parts or sensitive products. The high-intensity L.E.D. light modules penetrate the translucent belt, ensuring a consistent and clear illuminated surface, making it the perfect solution for visual inspections in industries like electronics, pharmaceuticals, and precision engineering.

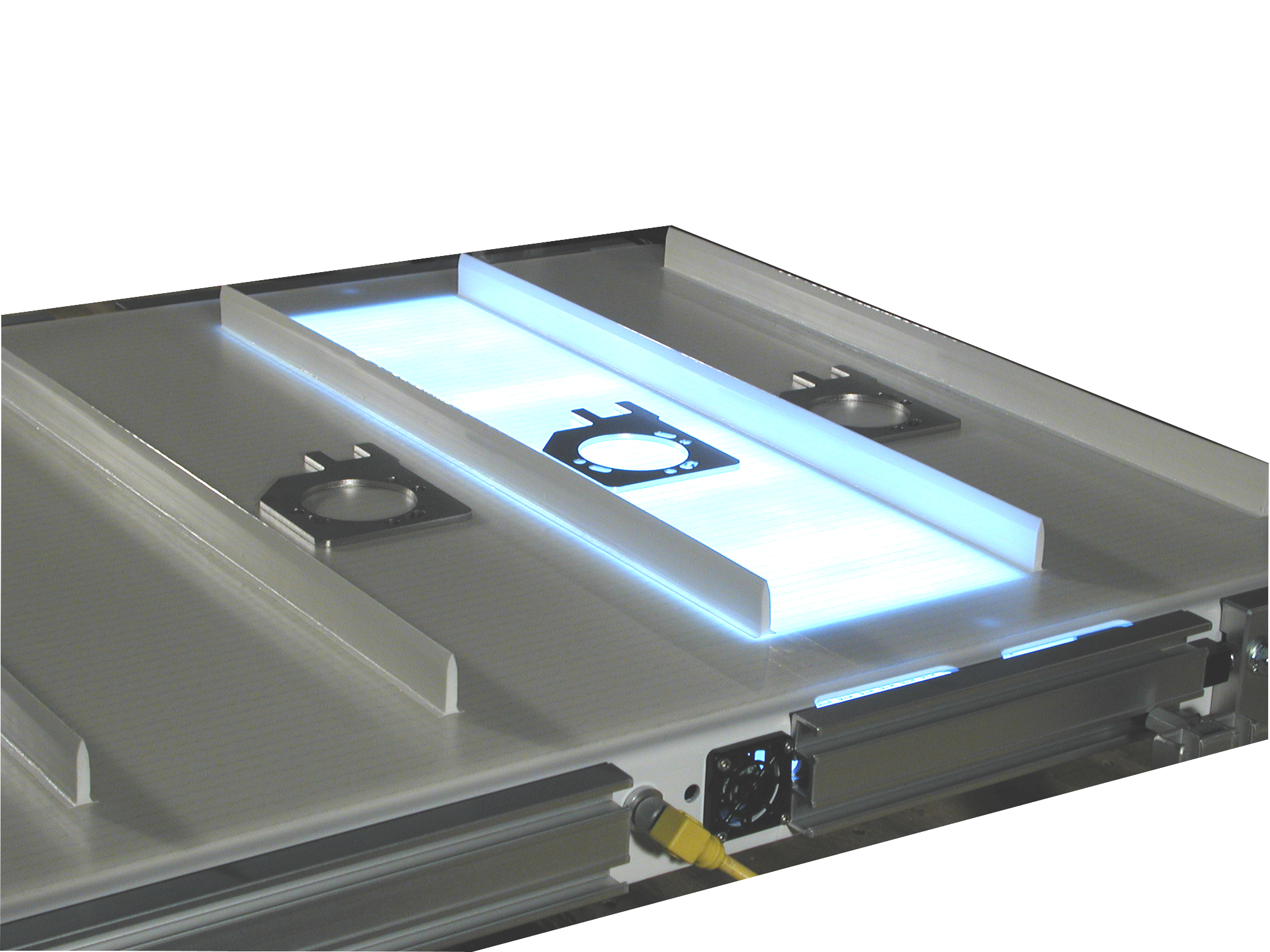

L.E.D. Illumination

The AccuVision Conveyor features an integrated L.E.D. light panel that provides a bright, consistent illumination surface. This enhances accuracy in quality control and inspection systems, ensuring that even the smallest defects are visible.

Specifications

Features

Benefits

Options

  • Belt Width Options: 3” (76mm), 6” (152mm), 12” (305mm)
  • Conveyor Length Options: 6” (152mm), 12” (305mm), 18” (457mm), 24” (610mm), 30” (762mm)
  • Lighting Options: Red or white high-intensity L.E.D. modules for superior illumination.
  • Frame Material: Powder-coated aluminum or stainless steel construction.
  • Operating Environment: Suitable for cleanroom and high-precision inspection systems.
  • Load Capacity: Up to 10 lbs (4.5 kg).
  • Warranty: 2-year unlimited hours, including bearings.
  • Integrated Backlit System: High-intensity L.E.D. light modules offer even and consistent illumination across the translucent belt, enhancing visual inspection precision.

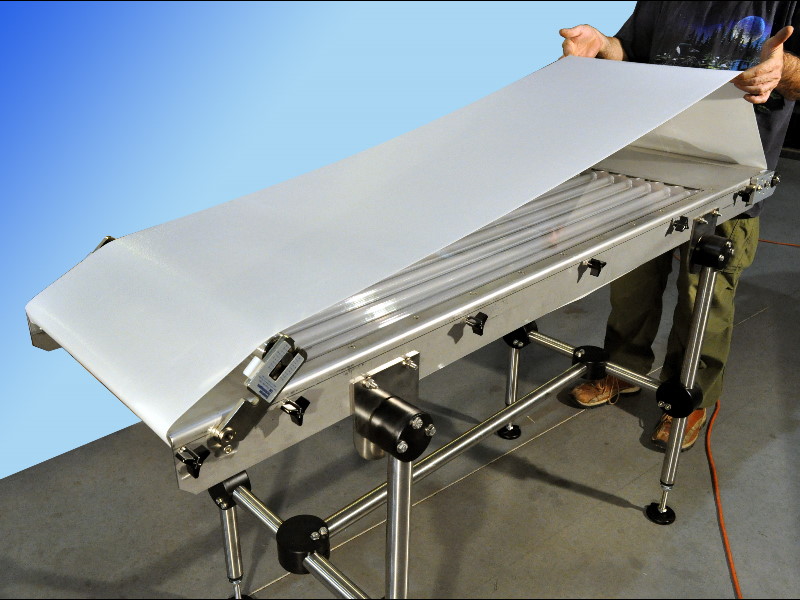

  • Translucent Belt Design: The translucent belt allows maximum light penetration, ensuring clearer and more accurate inspections.
  • Sealed-for-Life Bearings: Designed for maintenance-free operation, reducing downtime and ensuring reliability.
  • Compact, Low Profile Design: The slim profile allows for easy integration into existing systems, especially in environments with limited space.
  • Modular Components: Easily customizable with add-ons such as side rails, sensors, and part holders.
  • Enhanced Inspection Accuracy: The combination of high-intensity L.E.D. lighting and a translucent belt ensures precise and detailed inspections, making it ideal for industries requiring strict quality control.
  • Versatile Applications: Whether for automated or manual visual inspections, this conveyor excels in industries such as electronics, pharmaceuticals, precision engineering, and more.
  • Minimal Maintenance: With its sealed-for-life components and robust construction, the AccuVision conveyor offers low-maintenance operation, reducing downtime and costs.
  • Energy-Efficient Operation: Designed with energy efficiency in mind, the optimized L.E.D. modules and efficient motor systems reduce power consumption without sacrificing performance.
  • Customizable Solutions: Available in a variety of widths, lengths, and lighting options to meet the specific needs of different inspection environments.
  • Custom Belt Widths: Available in 3”, 6”, and 12” widths to accommodate varying inspection needs.
  • Custom Lengths: Select from available lengths, ranging from 6” to 30”, based on your application.
  • Lighting Options: Choose between red or white L.E.D. lighting to create the ideal inspection environment.
  • Part Holders: Customizable part holders for precise positioning and handling of small or delicate items.
  • Side Rails: Optional side guides for ensuring part stability during transport.

    • Key Features

    • High-Intensity L.E.D. Lighting: Superior illumination for inspection

    • Precision Design: Ideal for visual inspection systems

    • Translucent Belt: Maximizes light penetration

    • Modular System: Easily integrates into existing workflows

    • Low Maintenance: Sealed-for-life components for reduced downtime

    Documentation

    AccuVision Brochure
    Specification Details
    Belt Width Options 3" (76mm), 6" (152mm), 12" (305mm)
    Conveyor Length Options 6" (152mm), 12" (305mm), 18" (457mm), 24" (610mm), 30" (762mm)
    Load Capacity Up to 10 lbs (4.5 kg)
    Lighting Options High-intensity red or white L.E.D. modules
    Frame Material Powder-coated aluminum or stainless steel
    Operating Environment Cleanroom, pharmaceutical, high-precision inspection systems
    Warranty 2-year unlimited hours
