                            LOW PROFILE CONVEYORS




Up

[Product Image]
Click on image for larger view.

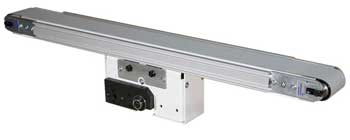

Center Drive Low Profile Conveyors: Type "B"

bulletLonger Conveyors
bulletMinimal space requirements at both ends
bulletPermits product overhang

Key Benefits

bulletUtilizes same drives as on end drive conveyors.
bulletSingle piece frame (10' and under)
bulletDrive can be repositioned
bulletQuick change belt
bulletReversible



Order Width

Belt Width
Inches     (mm)
02 2.5" (63)
03 3.25" (83)
04 4.5" (114)
06 6.0" (152)
07 7.5" (190)
10 10" (250)
12 12.0" (305)
18 18.0 (457)
24 24.0" (610)

Nominal
Conveyor Length

Feet

(mm)
2' (610)
3' (914)
4' (1219)
5' (1524)
6' (1829)
10' (3048)
12.5' (3810)
15.5' (4724)
19.5' (5944)
24' (7315)
29' (8839)
Optional lengths
available - contact
factory
